6.35/11kV 3 Core N2XSY PVC Xlpe Electrical Cable Circular conductor

China 6.35/11kV  3 Core N2XSY PVC Xlpe Electrical Cable Circular conductor supplier
6.35/11kV  3 Core N2XSY PVC Xlpe Electrical Cable Circular conductor supplier 6.35/11kV  3 Core N2XSY PVC Xlpe Electrical Cable Circular conductor supplier 6.35/11kV  3 Core N2XSY PVC Xlpe Electrical Cable Circular conductor supplier 6.35/11kV  3 Core N2XSY PVC Xlpe Electrical Cable Circular conductor supplier

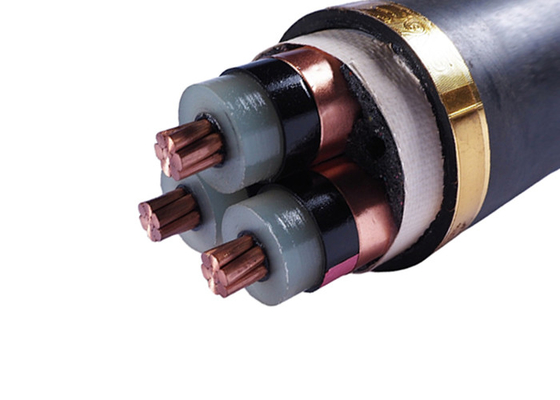

Large Image :  6.35/11kV 3 Core N2XSY PVC Xlpe Electrical Cable Circular conductor

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: YJV,N2XY

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum/ Steel wooden Drum / Whole steel Drum
Delivery Time: 10-15 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Rated Voltage: 5.8/10kV Or 6.35/11kV Conductor Type: Stranded Conductor (Class 2)
Core Mark: Number Or Color Strip Sheath Mark: Ink Printing Or Embossing
Drum Length: 500m Or As Per Request Outer Sheath Color: Black Or Customized
Insulation: XLPE Insulated Manufacturer: Shanghai Factory
Printing: Ink Printing Or Embossing Or Laser Printing
High Light:

N2XSY xlpe electrical cable

,

3 Core xlpe electrical cable

,

3 Core pvc xlpe cable

Medium Voltage XLPE Insulated Power Cable 3 Core Copper Conductor N2XSY Shanghai Manufacturer



As the Top Cable manufacturer in China, we can offer all kinds of Medium Voltage and Low Voltage Power Cable.

And also do as the Nexans OEM manufactuer, thus all the cable shall be qualified.







XLPE Insulated Power Cable Construction:



Conductor Copper Conductor as per IEC 60228,Class 2
Circular or Shaped conductor
Insulation XLPE (Cross-Linked Polyethylene) rated at 90℃,many color optional
Metallic Screen optional Copper tape or copper wires braiding optional
Sheath PVC or FR-PVC type ST2 to IEC 60502, black or red or customization



Technical parameter:



Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D. Approx.Weight Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
1 × 25 7/2.14 3.4 2 20.0 598 0.727 21 140 150
1 × 35 7/2.52 3.4 2 22.0 719 0.524 21 175 180
1 × 50 10/2.52 3.4 2 23.0 884 0.387 21 205 215
1 × 70 14/2.52 3.4 2 24.0 1097 0.268 21 260 265
1 × 95 19/2.52 3.4 2 26.0 1378 0.193 21 315 315
1 × 120 24/2.52 3.4 2 28.0 1658 0.153 21 365 360
1 × 150 30/2.52 3.4 2 30.0 1967 0.124 21 415 405
1 × 185 37/2.52 3.4 2 31.0 2335 0.0991 21 475 455
1 × 240 48/2.52 3.4 2 34.0 2908 0.0754 21 565 530
1 × 300 61/2.52 3.4 2 36.0 3507 0.0601 21 645 595
1 × 400 61/2.97 3.4 2.5 39.0 4503 0.0470 21 750 680
1 × 500 61/3.23 3.4 2.5 42.0 5479 0.0366 21 865 765
1 × 630 61/3.50 3.4 2.5 48.0 6952 0.0283 21 990 860
1 × 800 91/3.20 3.4 2.6 52.0 7120 0.0221 21 1140 950
1 × 1000 91/3.75 3.4 2.8 57.0 10500 0.0176 21 1250 1040
3 × 25 7/2.14 3.4 2.3 41.0 895 0.727 21 120 125
3 × 35 7/2.52 3.4 2.4 44.0 2293 0.524 21 145 155
3 × 50 10/2.52 3.4 2.5 46.0 2812 0.387 21 175 180
3 × 70 14/2.52 3.4 2.6 50.0 3508 0.268 21 220 220
3 × 95 19/2.52 3.4 2.7 53.0 4402 0.193 21 265 265
3 × 120 24/2.52 3.4 2.8 56.0 5319 0.153 21 305 300
3 × 150 30/2.52 3.4 2.9 59.0 6309 0.124 21 350 340
3 × 185 37/2.52 3.4 3.0 62.0 7319 0.0991 21 395 380
3 × 240 48/2.52 3.4 3.2 68.0 9218 0.0754 21 470 435
3 × 300 61/2.52 3.4 3.4 72.0 11159 0.0601 21 535 485
3 × 400 61/2.97 3.4 3.6 81.0 15107 0.0470 21 610 520




Ordering Advice

Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement





Technical data:

Rated voltage 5.8/10kV or 6.35/11kV Low Voltage

Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no

more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core without armor

15 x cable O.D for multi core without armor

15 x cable O.D for single core with armor

12 x cable O.D for multi core with armor



Standards:



International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)

China: GB/T 12706, (GB/T 18380-3 for FR-type only)

Other standards such as BS, DIN, VDE and ICEA upon request



Installation



1. The installation temperature should not over 20℃, If the ambient temperature is lower than 0℃, the cable should be preheated.
2. The bending radius of cable should not less than 8 times.





Packing and shipping:



We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

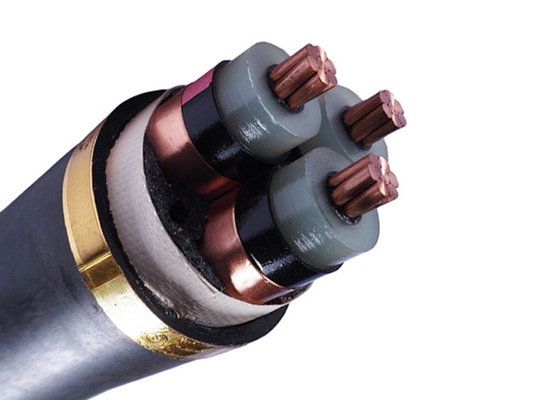

6.35/11kV  3 Core N2XSY PVC Xlpe Electrical Cable Circular conductor 0

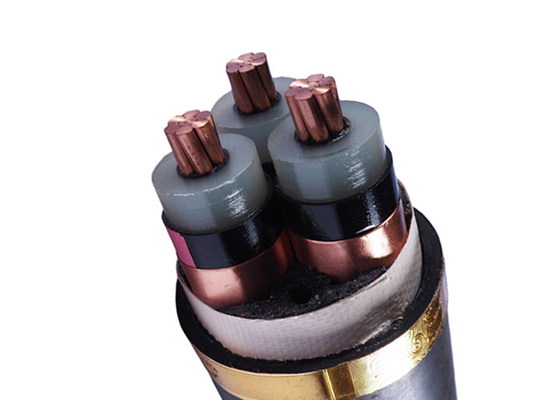

6.35/11kV  3 Core N2XSY PVC Xlpe Electrical Cable Circular conductor 1
