Product Details:
Payment & Shipping Terms:
|
| Color: | Black | Rated Voltage: | 0.6/1KV |
|---|---|---|---|
| Production: | OEM Accept | Jacket: | PVC |
| Feature: | Class 5 | Screen Material: | Copper Tape |
| High Light: | IEC62196-2 ev charging cord,Acid resistance EV Charging Cable,IEC62196-2 electric car charging leads |
||

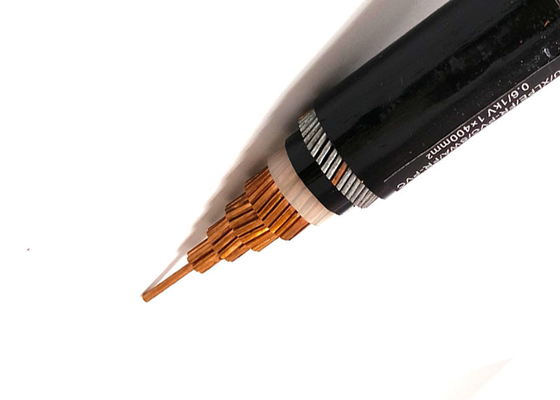

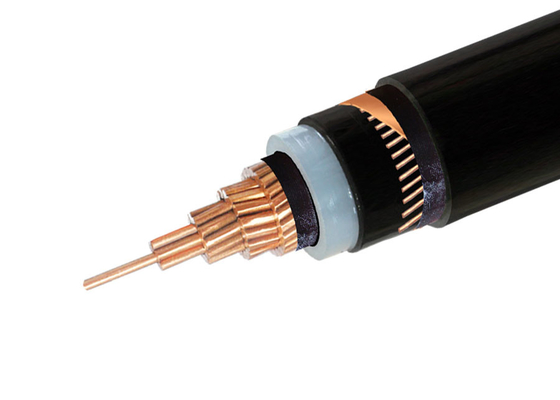

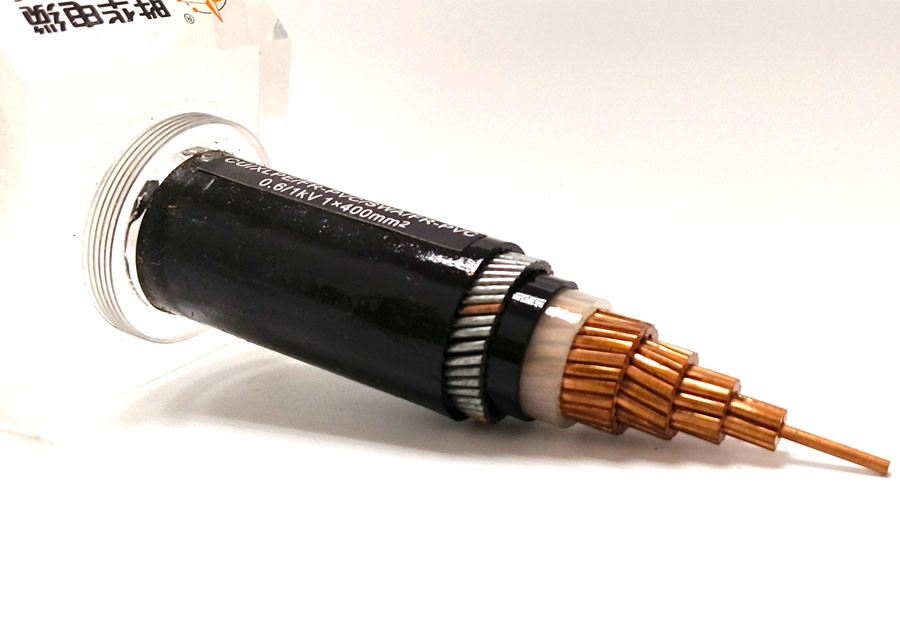

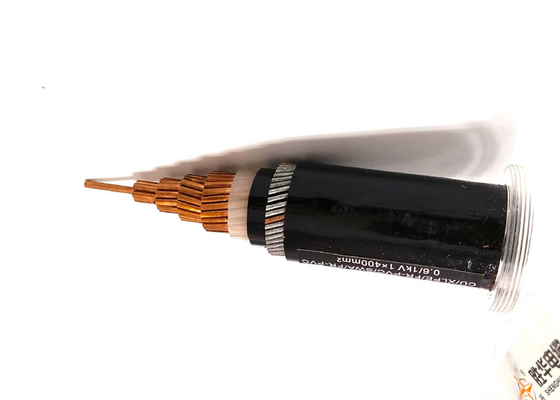

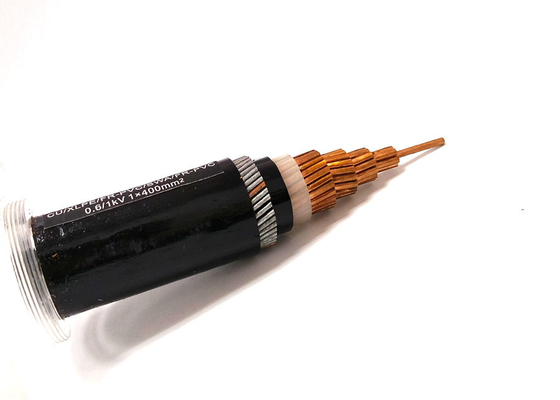

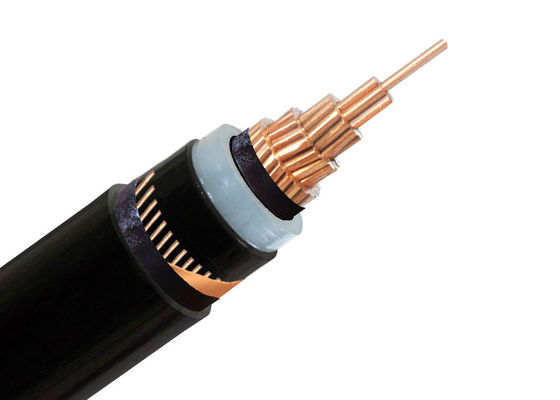

The SWA cable is suitable for transmission of electricity.
Product description:
| Construction | Features |
| 1.Conductor | Rated temperature :-15℃～90℃ |
| Material: Bare Copper | Rated Voltage : AC 300/500V, 450/750V；DC 1000V |
| 2.Insulation | Flame Test :VW-1 Test method Comply with UL 2556 |
| Material: ERP | Min: Bending Radius: ≥15*D.One core armoured. |
| Color: Black,Blue,Yellow/Green | Short Circuit:no longer than 5 seconds. No Breakdown |
| 3.Filler | Low temperature impact :-15℃, No cracks |
| Material: PVC | Hot Shock:90℃/1h No cracks |
| 4.Tape | Environmental Requirements:Compliant with RoHS and REACH |
| Material:Non-woven fabrics | |
| 5.Sheath | |
| Material: PVC | |
| Color: Black |
| Product number | specification | Insulation thickness | Outer sheath thickness | Approx. overall diameter of cable |
Apporx weightof cable |
| YJV |
1X1.5 |
0.7 | 1.4 | 6.2 | 49 |
| 1X2.5 | 0.7 | 1.4 | 6.6 | 61 | |
| 1X4 | 0.7 | 1.4 | 7.1 | 79 | |
| 1X6 | 0.7 | 1.4 | 7.6 | 101 | |
| 1X10 | 0.7 | 1.4 | 8.9 | 147 | |
| 1x16 | 0.7 | 1.4 | 10.0 | 210 | |
| 1X25 | 0.9 | 1.4 | 11.4 | 307 | |
| 1X35 | 0.9 | 1.4 | 12.4 | 405 | |
| 1X50 | 1.0 | 1.4 | 13.8 | 559 | |
| 1X70 | 1.1 | 1.4 | 13.8 | 559 | |
| 1X95 | 1.1 | 1.4 | 15.6 | 758 | |
| 1X120 | 1.2 | 1.5 | 17.4 | 1005 | |
| 1X150 | 1.4 | 1.6 | 21.2 |
1555 |
|
| 1X185 | 1.6 | 1.6 | 23.2 | 1900 | |
| 1X240 | 1.7 | 1.7 | 25.8 | 2436 | |
| 1X300 | 1.8 | 1.8 | 28.4 | 3020 | |
| 1X400 | 2.0 | 1.9 | 32.2 | 3988 | |
| 1x500 | 2.2 | 2.0 | 35.0 | 4947 | |
| 1x600 | 2.4 | 2.2 | 40.3 | 6235 |
The above product specifications, sizes, and structures may be changed due to technological progress. Similar specifications can be designed and manufactured according to customer needs.
Packing: Carton
Shippling DHL
