| Certification: | TUV/CE/KEMA/CCC | Product Name: | Low Smoke Zero Halogen Cable |
|---|---|---|---|
| Nominal Area Of Conductor: | 1.5mm2 To 800mm2 | Test Voltage: | 3.5KV/5min |
| Standard: | IE650502-1,IEC60228,IEC60227 | Application: | Power Transmission And Distribution And Lighting Systems |
| Outer Sheath Colour: | Black | Type: | WDZ-YJY23 |
| High Light: | KEMA Low Smoke Zero Halogen Cable,Armoured Low Smoke Zero Halogen Cable,Double Steel Tape lszh cable |
||
Low Smoke Zero Halogen Double Steel Tape Armoured Cable KEMA Certificate
With the development of the society, all the cables have the environmentally friendly features, which can protect the enviorment.
Shanghai Shenghua can design and produce this type of cable for long time.
Low Smoke Zero Halogen Cable Constructions
① Conductor: Plain circular stranded copper conductor, conform to IEC 60228 class 2
② Insulation: XLPE
Low Smoke Zero Halogen Cable Applications
Suitable for use in power distribution lines or fixed installations with rated voltage up to 0.6/KV indoor/outdoor, enclosed in conduit, in underground duct where not subject to mechanical damage.
Low Smoke Zero Halogen Cable Standards
International: IEC 60502-1, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
Low Smoke Zero Halogen Cable Certificates
CE, RoHS, CCC, KEMA and more others at request
Low Smoke Zero Halogen Cable Parameters
4 Cores
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Sheath Thickness | Approx. O.D. |
Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃)Ω /km | Testing Voltage A.C | |
| mm2 | pc/mm | mm | mm | Lower Limit (mm) | Upper Limit (mm) | kg/km | Ω /km | kV/5min |
| 4 × 10 | 7/1.38 | 1.0 | 1.8 | 18.7 | 20.4 | 393.0 | 1.83 | 3.5 |
| 4 × 16 | 7/1.78 | 1.0 | 1.8 | 21.2 | 22.9 | 541.0 | 1.15 | 3.5 |
| 4 × 25 | 7/2.14 | 1.2 | 1.8 | 24.5 | 26.2 | 794.0 | 0.727 | 3.5 |
| 4 × 35 | 7/2.52 | 1.2 | 1.8 | 26.9 | 28.6 | 1037.0 | 0.524 | 3.5 |
| 4 × 50 | 10/2.52 | 1.4 | 1.8 | 26.8 | 28.5 | 1227.0 | 0.387 | 3.5 |
| 4 × 70 | 14/2.52 | 1.4 | 1.8 | 28.0 | 29.7 | 1650.0 | 0.268 | 3.5 |
| 4 × 95 | 19/2.52 | 1.6 | 2.0 | 32.9 | 34.6 | 2213.0 | 0.193 | 3.5 |
| 4 × 120 | 24/2.52 | 1.6 | 2.1 | 34.8 | 36.5 | 2273.0 | 0.153 | 3.5 |
| 4 × 150 | 30/2.52 | 1.8 | 2.2 | 40.0 | 41.7 | 3396.0 | 0.124 | 3.5 |
| 4 × 185 | 37/2.52 | 2.0 | 2.3 | 43.5 | 45.2 | 3943.0 | 0.0991 | 3.5 |
| 4 × 240 | 48/2.52 | 2.2 | 2.5 | 49.0 | 50.7 | 5135.0 | 0.0754 | 3.5 |
| 4 × 300 | 61/2.52 | 2.4 | 2.7 | 54.6 | 56.3 | 6436.0 | 0.0601 | 3.5 |
| 4 × 400 | 61/2.97 | 2.6 | 3.1 | 69.0 | 70.7 | 8356.0 | 0.0470 | 3.5 |

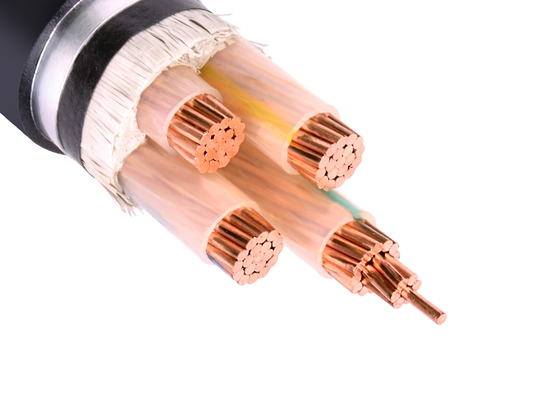

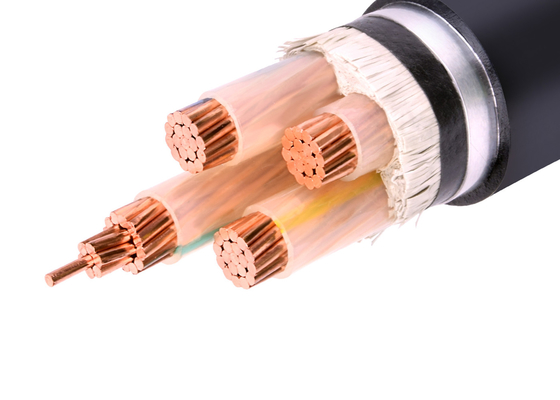

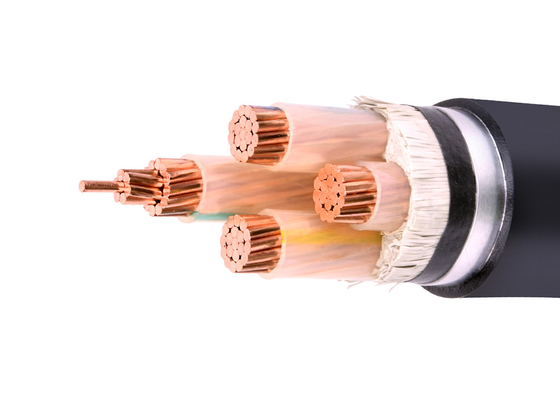

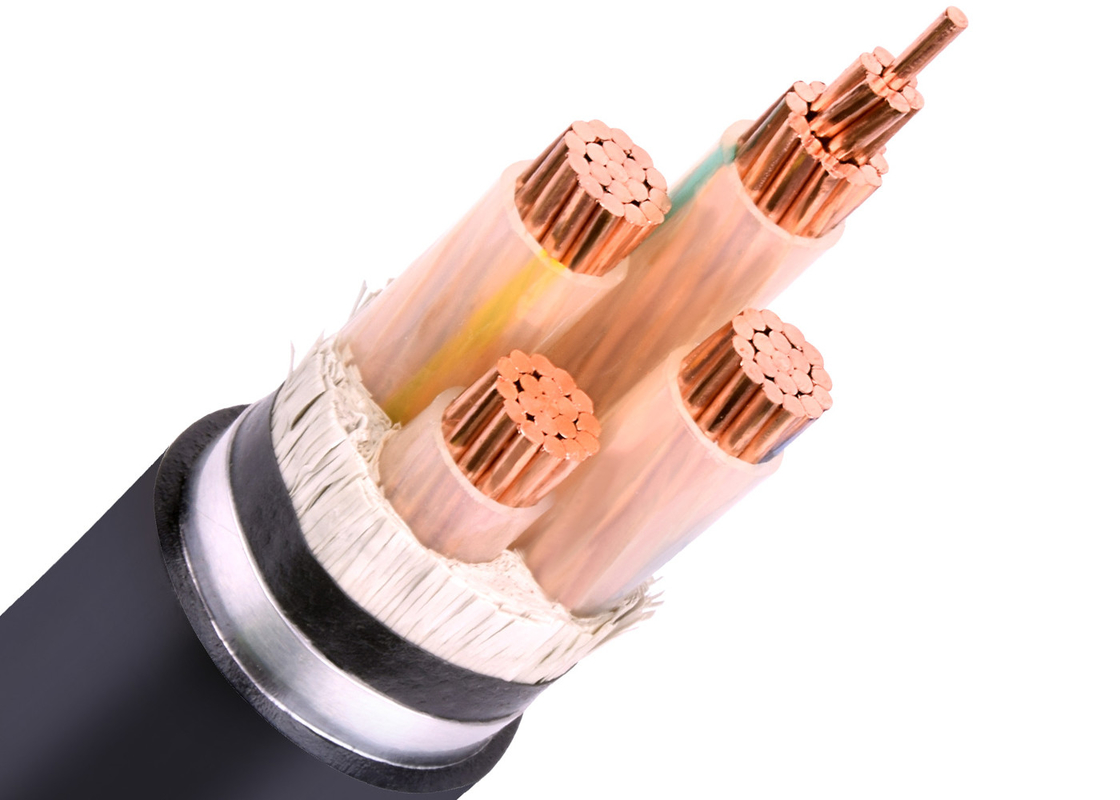

Pictures
