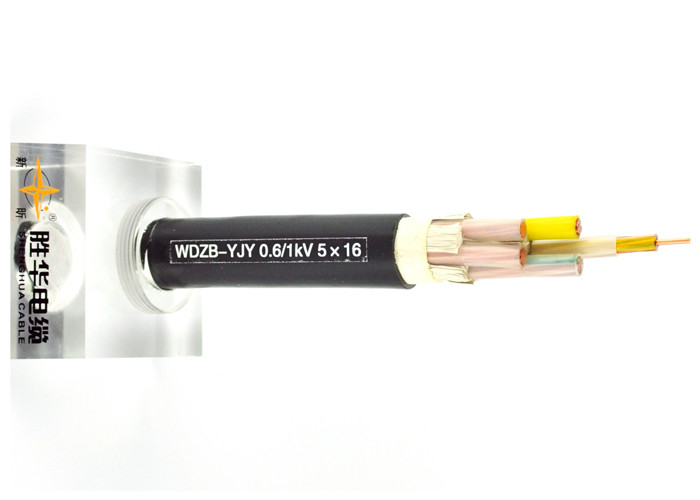

IEC60754 PVC Sheathed Single Lshf Low Smoke Zero Halogen Cable

Environmentally Low Smoke Zero Halogen Cable IEC60502 IEC60754 IEC61034-1 60331

With the development of the society, all the cables have the environmentally friendly features, which can protect the enviorment.

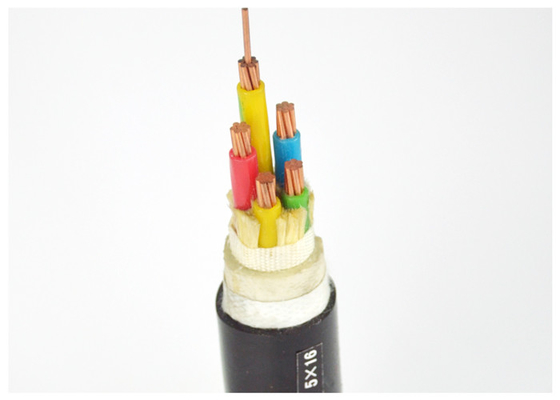

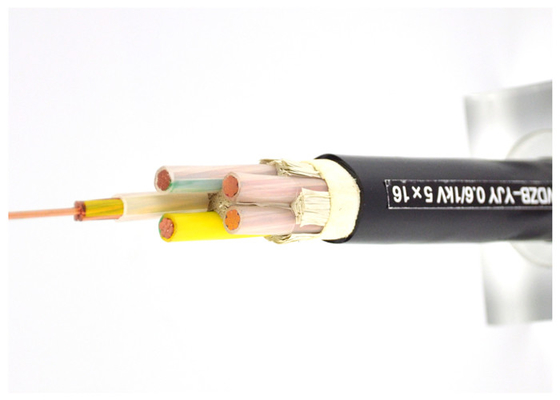

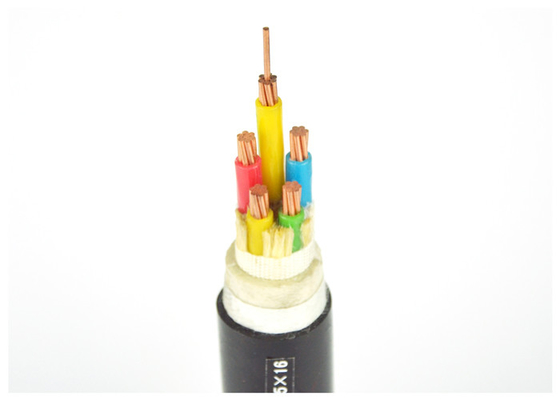

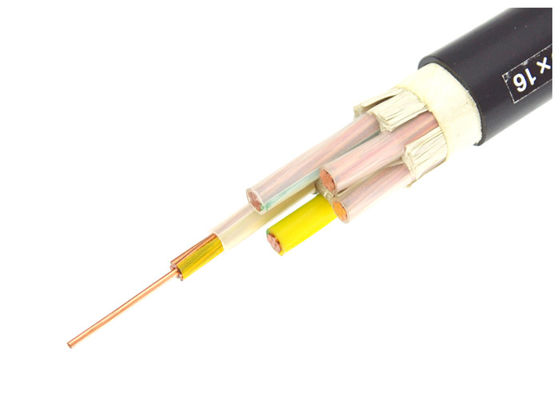

Construction

Conductor: Annealed bare copper solid or strands. The copper wires are formed into final conductor in the stranding machines under strict quality surveillance.

Insulation: Cross linked polyethylene compound is insulated over the conductors by extrusion process.The raw materials and thicknesses of Insulation are maintained as per standards and conform to IEC60502/BS7870 Standards as the case may be.

XLPE:Insulated Power Cable are identified either by colour or by numbers as follows:
No. of cores Identification
Old Colour coding New Colour coding as per different customers. Normally the color as below:
1 Red or Black Brown or Blue
2 Red & Black Brown, Blue
3 Red, Yellow Blue Brown, Black, Grey
4 Red, Yellow, Blue & Black Blue, Brown, Black, Grey
5 Red, Yellow, Blue, Black, Y/G Blue, Brown, Black, Grey & Y/G

Armour : Single core cables are armored with Aluminium Wires or Aluminum Tape armored based on requirement.

Three core: steel wire armored or Steel tape armored.

Outer sheath : Polyene Hydrogen Sheath , LSHO

Standards

International: IEC 60502, IEC 60227 IEC 60331, IEC 61034 60332

China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

Other standards such as BS,DIN and ICEA upon request

Parameters

Details

Packaging
