0.6kv / 1kV Lszh Jacket Low Smoke Zero Halogen Cable IEC60754

China 0.6kv / 1kV Lszh Jacket Low Smoke Zero Halogen Cable IEC60754 supplier
0.6kv / 1kV Lszh Jacket Low Smoke Zero Halogen Cable IEC60754 supplier 0.6kv / 1kV Lszh Jacket Low Smoke Zero Halogen Cable IEC60754 supplier 0.6kv / 1kV Lszh Jacket Low Smoke Zero Halogen Cable IEC60754 supplier

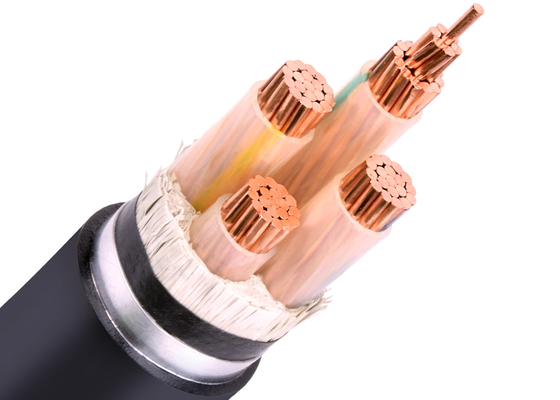

Large Image :  0.6kv / 1kV Lszh Jacket Low Smoke Zero Halogen Cable IEC60754

Product Details:

Place of Origin: SHANGHAI,CHINA
Certification: PCCC/ISO/CE/KEMA
Model Number: WDZA-YJLY

Payment & Shipping Terms:

Minimum Order Quantity: 300m
Price: USD 0.5-50/meter
Packaging Details: Fumigation Wooden Drum or Customized
Delivery Time: As per requirement
Supply Ability: 500km per month
Contact Now
Detailed Product Description
Function: Environmental Protection Size: 1.5-C
Color: Red,yellow,blue,black,green Sample: Free
Rated Voltage: 600/1000V Standard: IEC60502-1,IEC61034,IEC60754
Test Voltage: 3.5KV/5min Outer Sheath Color: Orange Or As Per Request
High Light:

annealed Low Smoke Zero Halogen Cable


IEC60754 Low Smoke Zero Halogen Cable


IEC60754 lszh jacket cable

0.6kv / 1kV Low Smoke Halogen Free Aluminum Cable Wire CE ISO Certification



Conductor: Class 1/2 annealed bare copper solid or strands. This wires are formed into final conductor in the stranding machines under strict quality surveillance.


Insulation: Cross linked polyethylene compound or PVC is insulated over the conductors by extrusion process.The raw materials and thicknesses of Insulation are maintained as per standards and conform to IEC60502/BS7870 Standards as the case may be.


XLPE: Insulated Power Cable are identified either by colour or by numbers as follows:
No. of cores Identification
Old Colour coding New Colour coding as per BS
1 Red or Black Brown or Blue
2 Red & Black Brown, Blue
3 Red, Yellow Blue Brown, Black, Grey
4 Red, Yellow, Blue & Black Blue, Brown, Black, Grey
5 Red, Yellow, Blue, Black, Y/G Blue, Brown, Black, Grey & Y/G


Armour : When armouring is required, the armour consists of single layer of galvanised steel wires/galvanized steel tapes.
The armour is applied helically as per standards.
Single core cables are armoured with Aluminium Wires or Copper wires based on requirement.


Outer sheath : Standard cables are manufactured with Extruded black PVC. Outersheath is embossed or printed with the information required by relevant standards.
Special FR, FRLS, FRRT, LSF, MDPE compounds are used for outersheathing of cables, to suit customer’s specific requirements.



International: IEC 60502, IEC 60227 IEC 60331, IEC 61034

China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

Other standards such as BS,DIN and ICEA upon request


   Technical data

Rated voltage: 0.6-1kV

Max. Conductor Temp.:normal (90℃), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C

Min. Bending Radius: single core cable 20(d+D)±5% ,Multi-core cable 15(d+D)±5%



About Shenghua:


The biggest cable Manufacturer in China

Listed as No.2 of TOP 10 Cable Manufacturers

3 branch factories listed as Top 10 Cable Factories in China

Originated in 1950 and found in 1997

21 branch factories around China

80--available types of cables

600--sales branches and offices around the world


1332000 m2--Total spaces
1100000 km--Annual output of cables
10000000000 RMB--Annual sales amount




Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:

1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.

We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!

Shanghai Shenghua Cable (Group) Co., Ltd.

Nom. Cross-section of conductor Insulation Thickness Sheath Thickness Approx. O.D. Approx. Weight Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 mm mm mm kg/km Ω /km kV/5min In air (A) In soil(A)
1×16 0.7 1.5 9 120 1.91 3.5 80 100
3×16 0.7 1.5 17 340 1.91 3.5 65 80
4×16 0.7 2.0 19 366 1.91 3.5 65 80
3×16+1×10 0.7 1.5 18 322 1.91 3.5 65 80
mm2 mm mm mm kg/km Ω /km kV/5min In air (A) In soil(A)
1×25 0.9 1.5 10 190 1.20 3.5 115 130
3×25 0.9 2.0 21 470 1.20 3.5 90 100
4×25 0.7 2.0 22 540 1.20 3.5 90 100
3×25+1×16 0.9 2.0 22 505 1.20 3.5 90 100

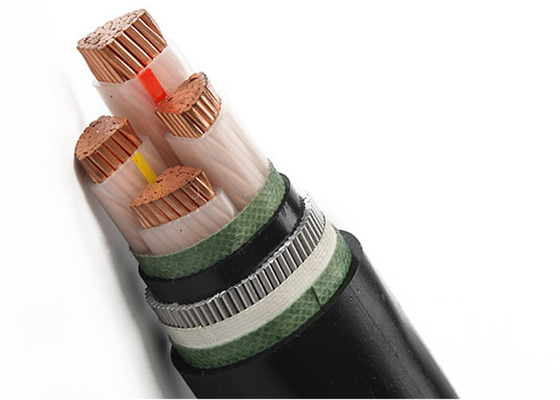

0.6kv / 1kV Lszh Jacket Low Smoke Zero Halogen Cable IEC60754 00.6kv / 1kV Lszh Jacket Low Smoke Zero Halogen Cable IEC60754 1

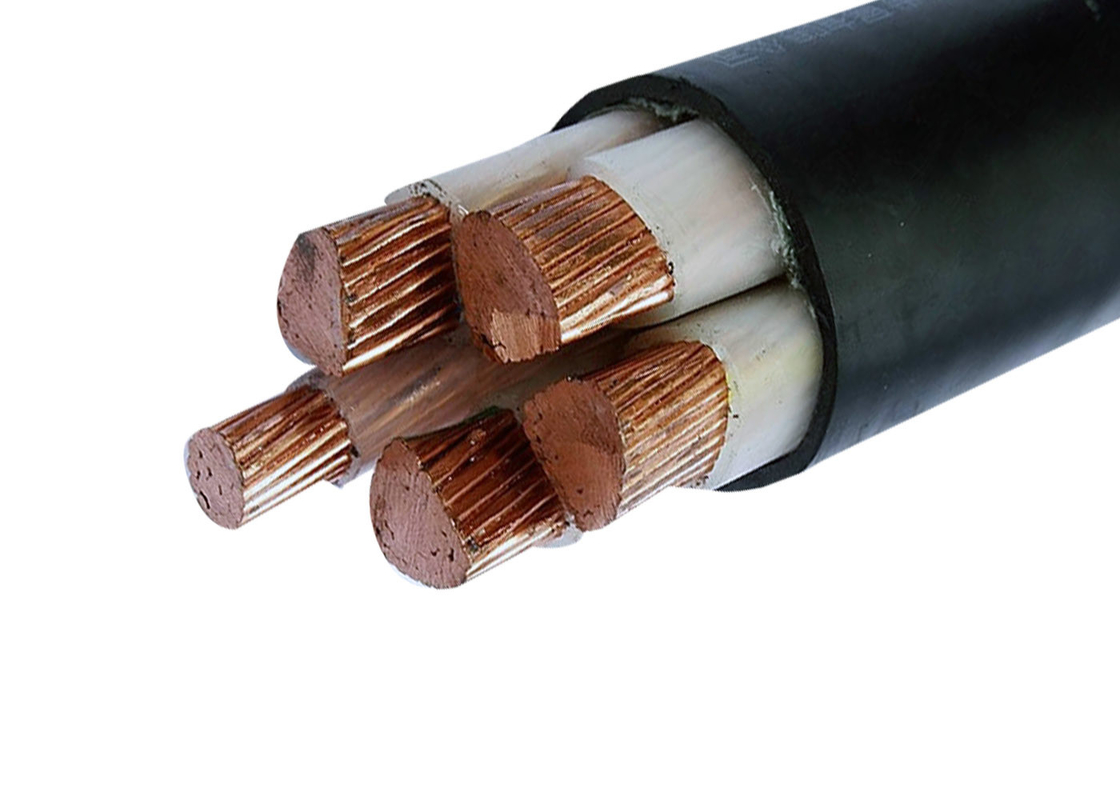

0.6kv / 1kV Lszh Jacket Low Smoke Zero Halogen Cable IEC60754 2
