Product Details:
Payment & Shipping Terms:
|
| Size: | 1.5-600mm2 | Sheath Color: | Black Or Customized |
|---|---|---|---|
| Sample: | Available | Rated Voltage: | 0.6/1kV |
| Standard: | IEC60502-1,IEC61034,IEC60754 | Test Voltage: | 3.5KV/5min |
| Applicable: | Power Distribution | ||
| High Light: | STA Armoured lszh jacket cable,STA Armoured lszh power cable,Customized Color lszh power cable |
||

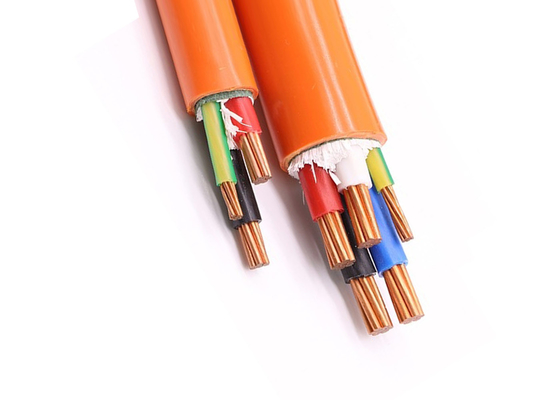

SWA / STA Armoured LV Low Smoke Zero Halogen Cable Laying Indoors Outdoors
Application
lszh cable is suitable for cable channel, laying in indoors,and conduit etc., such cables can’t bear strong mechanical force.XLPE Insulation has excellent chemical corrosion resistance, but also has the properties of flame retardant and non water absorption.
Conductor Shape
Parameter
1. Long-time working temperature should be lower than 90°C, should not be lower than 0°C.
2. Once short-circuit (the Max. duration 5s), the maximum conductor temperature does not be over 160 °C
3. Fire-resistant, Flame retardant, LOSH, Can Do As Your Request.
| Production Range of Low Voltage Cable | ||||
| Type | Constructions | Number of cores | Rated Voltage kV | |
| 0.6/1(1.2) | 1.8/3 1.9/3.3 |
|||
| Nominal cross-section of conductor mm2 | ||||
| 1, Cu/PVC/PVC 2, Cu/XLPE/PVC 3, Cu/XLPE/LSZH 4, Al/PVC/PVC 5, Al/XLPE/PVC 6, Al/XLPE/LSZH |
Conductor: Copper or Aluminum Insulation: PVC or XLPE Over sheath: PVC, PE or LSZH Remark: The cable can be of flame retardant, fire resistance, environment friendly or other property. |
1 | 1.5-800 | 10-800 |
| 2 | 1.5-500 | 10-500 | ||
| 3 | 1.5-500 | 10-500 | ||
| 4 (3C+E) | 1.5-500 | 10-500 | ||
| 5 (4C+E) | 1.5-500 | 10-500 | ||
| 1, Cu/PVC/PVC/STA/PVC 2, Cu/XLPE/PVC/STA/PVC 3, Cu/XLPE/LSZH/STA/LSZH 4, Al/PVC/PVC/STA/PVC 5, Al/XLPE/PVC/STA/PVC 6, Al/XLPE/LSZH/STA/LSZH |
Conductor: Copper or Aluminum Insulation: XLPE or PVC Inner sheath: PVC, PE or LSZH Armor: Steel tape or Aluminum tape Over sheath: PVC, PE or LSZH Remark: The cable can be of flame retardant, fire resistance, environment friendly or other property. |
1 | 1.5-800 | 10-800 |
| 2 | 1.5-500 | 10-500 | ||
| 3 | 1.5-500 | 10-500 | ||
| 4 (3C+E) | 1.5-500 | 10-500 | ||
| 5 (4C+E) | 1.5-500 | 10-500 | ||
| 1, Cu/PVC/PVC/SWA/PVC 2, Cu/XLPE/PVC/SWA/PVC 3, Cu/XLPE/LSZH/SWA/LSZH 4, Al/PVC/PVC/SWA/PVC 5, Al/XLPE/PVC/SWA/PVC 6, Al/XLPE/LSZH/SWA/LSZH |
Conductor: Copper or Aluminum Insulation: XLPE or PVC Inner sheath: PVC, PE or LSZH Armor: Steel Wire or Aluminum wire Over sheath: PVC, PE or LSZH Remark: The cable can be of flame retardant, fire resistance, environment friendly or other property. |
1 | 1.5-800 | 10-800 |
| 2 | 1.5-500 | 10-500 | ||
| 3 | 1.5-500 | 10-500 | ||
| 4 (3C+E) | 1.5-500 | 10-500 | ||
| 5 (4C+E) | 1.5-500 | |||
