Product Details:
Payment & Shipping Terms:
|
| Function: | Protecting Environmental | Size: | 1.5-800mm2 |
|---|---|---|---|
| Sheath Color: | Black | Sample: | Free |
| Rated Voltage: | 0.6/1kV | Standard: | IEC60502-1,IEC61034,IEC60754 |
| Test Voltage: | 3.5KV/5min | Corporation: | Shenghua Group |
| Brand: | Sh Cable | ||
| Highlight: | NYCY Low Smoke Zero Halogen Cable,Custom Low Smoke Zero Halogen Cable,Custom NYCY cable |
||

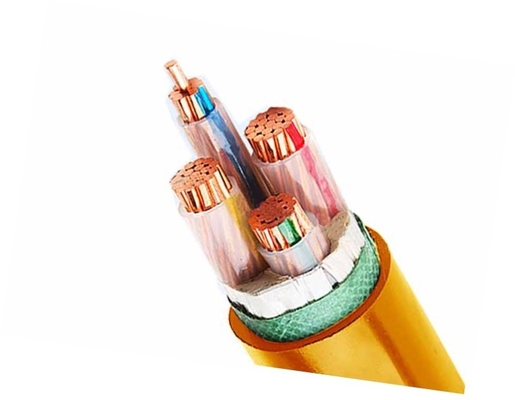

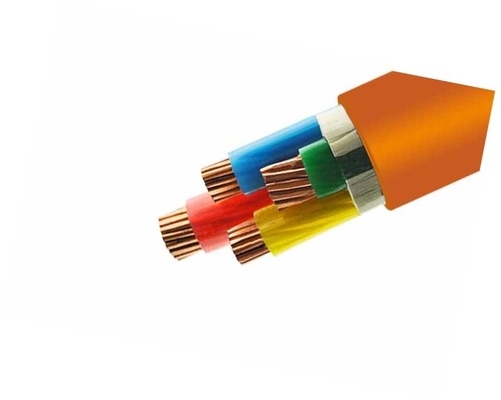

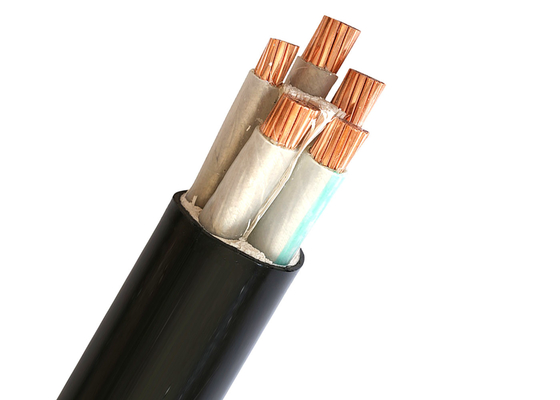

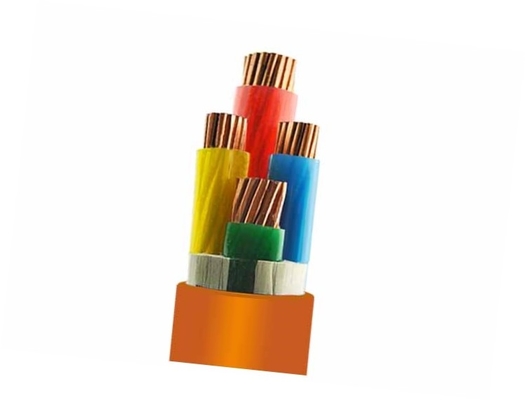

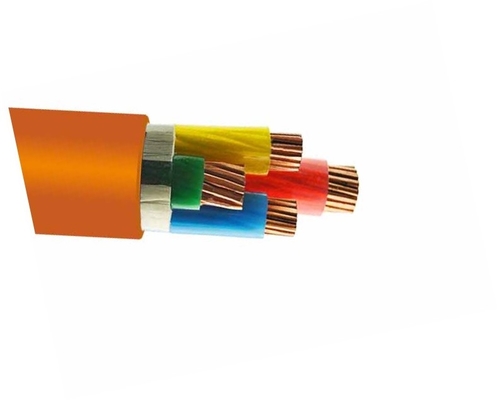

Custom Low Smoke Zero Halogen Cable , LSZH Power Cable NYY NYCY 0.6KV / 1KV
| Production Range of Low Voltage Cable | ||||
| Type | Constructions | Number of cores | Rated Voltage kV | |
| 0.6/1(1.2) | 1.8/3 1.9/3.3 |
|||
| Nominal cross-section of conductor mm2 | ||||
| 1, Cu/PVC/PVC 2, Cu/XLPE/PVC 3, Cu/XLPE/LSZH 4, Al/PVC/PVC 5, Al/XLPE/PVC 6, Al/XLPE/LSZH |
Conductor: Copper or Aluminum Insulation: PVC or XLPE Over sheath: PVC, PE or LSZH Remark: The cable can be of flame retardant, fire resistance, environment friendly or other property. |
1 | 1.5-800 | 10-800 |
| 2 | 1.5-500 | 10-500 | ||
| 3 | 1.5-500 | 10-500 | ||
| 4 (3C+E) | 1.5-500 | 10-500 | ||
| 5 (4C+E) | 1.5-500 | 10-500 | ||
| 1, Cu/PVC/PVC/STA/PVC 2, Cu/XLPE/PVC/STA/PVC 3, Cu/XLPE/LSZH/STA/LSZH 4, Al/PVC/PVC/STA/PVC 5, Al/XLPE/PVC/STA/PVC 6, Al/XLPE/LSZH/STA/LSZH |
Conductor: Copper or Aluminum Insulation: XLPE or PVC Inner sheath: PVC, PE or LSZH Armor: Steel tape or Aluminum tape Over sheath: PVC, PE or LSZH Remark: The cable can be of flame retardant, fire resistance, environment friendly or other property. |
1 | 1.5-800 | 10-800 |
| 2 | 1.5-500 | 10-500 | ||
| 3 | 1.5-500 | 10-500 | ||
| 4 (3C+E) | 1.5-500 | 10-500 | ||
| 5 (4C+E) | 1.5-500 | 10-500 | ||
| 1, Cu/PVC/PVC/SWA/PVC 2, Cu/XLPE/PVC/SWA/PVC 3, u/XLPE/LSZH/SWA/LSZH 4, Al/PVC/PVC/SWA/PVC 5, Al/XLPE/PVC/SWA/PVC 6, Al/XLPE/LSZH/SWA/LSZH |
Conductor: Copper or Aluminum Insulation: XLPE or PVC Inner sheath: PVC, PE or LSZH Armor: Steel Wire or Aluminum wire Over sheath: PVC, PE or LSZH Remark: The cable can be of flame retardant, fire resistance, environment friendly or other property. |
1 | 1.5-800 | 10-800 |
| 2 | 1.5-500 | 10-500 | ||
| 3 | 1.5-500 | 10-500 | ||
| 4 (3C+E) | 1.5-500 | 10-500 | ||
| 5 (4C+E) | 1.5-500 | |||
Packaging Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum Size:
As per cable length and container size
* In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Port: Shanghai,China, or other ports as per your requirements.
Sea freight: FOB/C&F/CIF quotation are all available.
Frequently Asked Questions:
Q 1: I didn’t find my needed cable in this page.
Answer: Dear Friend, Kindly check our catalog. Also, we supply customization service. So, contact us ! :)
Q 2: What’s your Minimum Order Quantity?
Answer: Normally, 100m for small wires. 200m for unarmoured cable. 500m for armoured cable. 1000m for power cable
above 69kV.
Q 3: When can i get the price and what’s the validity?
Answer: For standard types and small orders, it take less than 24 hours. For big quantity and plenty types, it takes less than 48 hours. Validity is 7 days or as per LME price for tenders and big orders.
Q 4: What’s your payment terms?
Answer: By T/T 30% in advance ; Balance 70% before shipment. Or LC at sight. Now you can pay through Alibaba
company to our Alibaba sub-account.
Q 5: What’s your delivery time?
Answer: It depends on whether we just has the stock for your type. Or, it takes about 10 - 30 days for normal orders.
Q 6: How is your quality guarantee?
Answer: It will be stated along with our quotation sheet.
Q 7: What’s your package method?
Answer: Usually, it’s cable reel for wires. Wooden drums for small size cables and steel drums for big size cables.
Anyway, all are exporting package to assure no damage in the transportation process.
