| Standard: | IEC60227,IEC60332-1 | Color: | Red ,Black,Yellow,Brown,Blue Or Customized |
|---|---|---|---|
| Size: | 1.5mm2 ,2.5mm2,4mm2,6mm2,10mm2 | Rated Voltage: | 300/500V,450/750V |
| Insulation: | PVC | Sample: | Free For 1.5 Meter |
| Number Of Cores: | 1,2,3,4,5 | ||
| High Light: | PVC Insulated LSOH Cable,Insulated LSOH Cable,PVC Insulated xlpe lsoh cable |
||

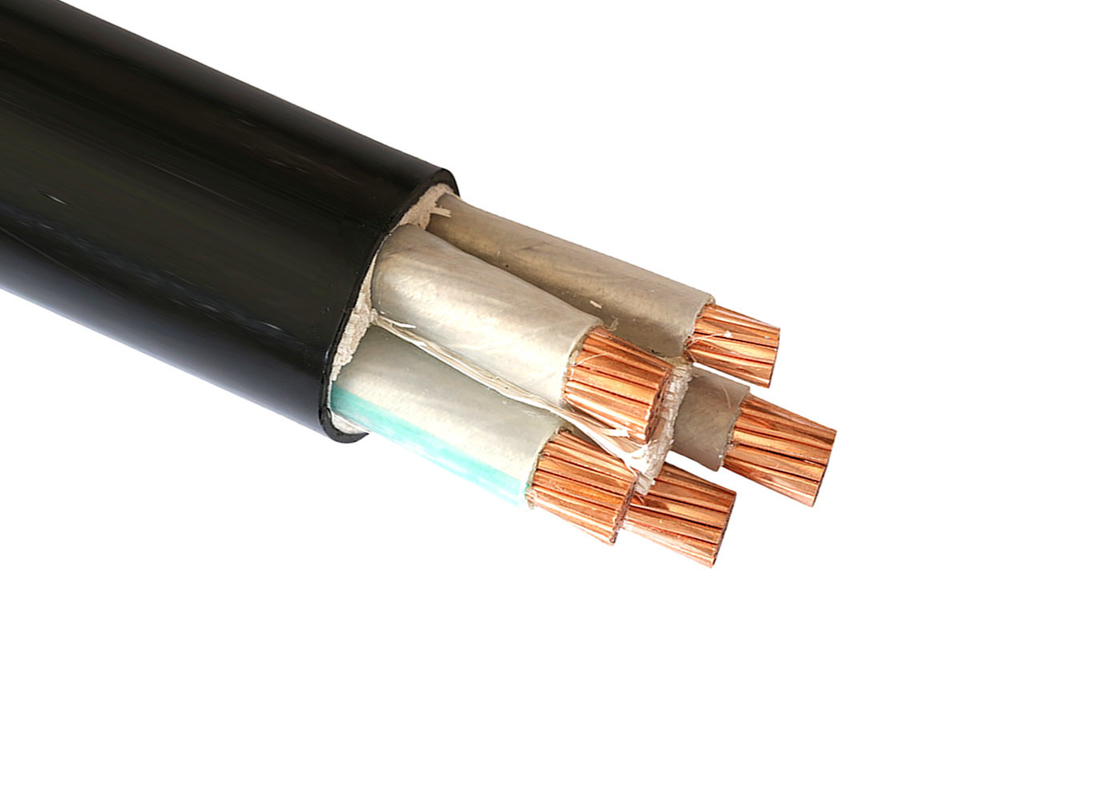

Commercial LSOH Cable PVC Insulated Electrical Wire Red Black Yellow Brown Color
Cable Structure
Conductor : Class 1,2,5 Flexible Copper Conductor
Screen: Mica tape
Insulation: PVC or LSZH PO
Rated Voltage : 450/750V
PVC Insulated Electrical Wire( 450/750V)
Product description:
PVC insulated wires belong to the series of laying electric wires, which are mainly suitable for placing at the fixed places. It is widely used as connectors of drive, lighting, electronic equipment, instrument and telecommunication equipment with rated voltage 450/750V (U0/U) or below.
Technique property:
The wires have the property of insulation and flame resistance, good quality and durability.
The long term working temperature of BV-105 can not be exceed 105℃, others not be exceed 75℃, the laying temperature can not be lower than 0℃
2. Technical data
Temperature range :
during installationi : +5 °C up to +70 °C
fixed installed : -30 °C up to +70 °C
at short circuit of max. 5 s : up to 150 °C
ambient temperature at storage : up to 40 °C
Nominal voltage : Uο/U = 300/500 V
Test voltage : 2000 V
Minimal inner bending radius : 4D for D < 8 mm
5D for 8 - 12 mm
6D for D > 12 mm
Why Choose US ?
Packaging & Shipping
| Standard Packaging | suitable for long-distance shipment |
| Normal cable factory length | one coil with 100 meter |
| Cable Weight | Approx. 15kg/km ~500kg/km |
