Product Details:
Payment & Shipping Terms:
|
Model Name: | Shielded Instrument Cable | Conductor Type: | Stranded Copper |
---|---|---|---|
Size: | 1.5~10sqmm | Warranty: | 2 Years |
Insulation Color: | Any Color | Flame Retardant: | Yes |
Armoured: | Steel Wire | Screen: | AL-foil Plastic |
High Light: | PE Insulation Shielded Power Cable,CU Core Shielded Power Cable,Al Foil Plastic Screen Shielded Cable |

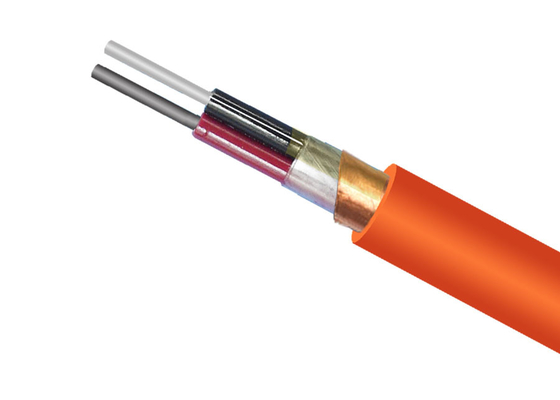

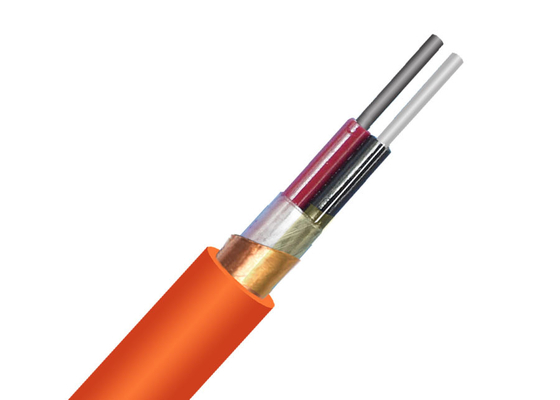

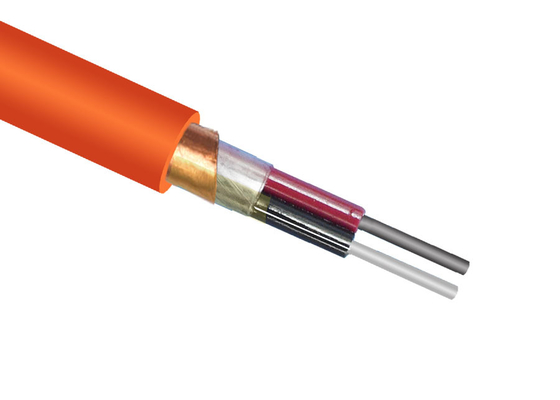

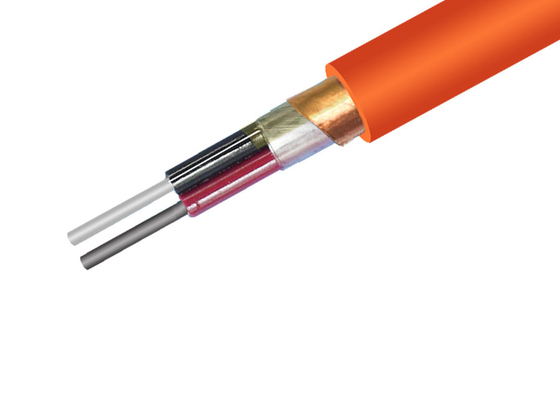

Stranded Copper Conductor PE Insulated Al-Foil Plastic Screen With Steel Wire Armoured LSZH Sheath
Description:
Conductor | Material | Copper/Tinned Copper |
Type | Stranded/Solid/Flexible | |
Insulation | Material | PE/XLPE/PVC |
Shield | Material | Copper wire braiding, Copper tape wrapping and Al-foil plastic with drain wire |
Armored | Material | Steel wire or steel tape optional |
Outer Sheath | Material | PVC/PE/LSZH |
Application:
This product applies for connecting wire of electric appliance,apparatusor computer,used in distribution eqwipments with rated voltage up to and including A.C.450/750V
Shielded Instrument Cable is used as signal transmission and connection of checking appliances of distribution system, computer system and automatic system of power.
For use in installations designed to connect electrical instrumentation circuits and provide communication services in and around process plants. Suitable for direct burial applications.
Character and Relevant Parameters:
1. Long-term service temperature of the cable conductor: 70 or 90°C
2. Rated voltage: 300/500V,450/750V ,600/1000V.
3. Cable lying temperature ≥ 0°C
4. Cores(pair/triple): 1~19
5. Minimun bending radius:≥ out diameter of cable 6 times
Use condition
The cable is approved to operate upon fixed-installation or moveable using in ambient temperature from -40 ℃ to 50 ℃ , relative humidity not larger than 80%and operating temperature of core not higher than 70 ℃ as well as avoiding direct high-temperature radiation or contact. The temperature shall never less than 0℃ when the cable being laid. Permissible bending radius:not less than 6 times of overall diameter for unarmored cable;not less than 12 times of overall diameter for armored or screened cable;not less than 6 times of overall diameter for screened flexible cable.
Type Optional:
No. | Optional Type | Instrumenation Cable Description |
1 | DJYVPR | Instrumenation soft cable with Cu core, PE insulation, PVC sheath, copper wire braided overall shielding |
2 | DJYPVP | Instrumenation cable with Cu core, PE insulation, PVC sheath, copper wire braided individual & overall shielding |
3 | DJYPVPR | Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, copper wire braided individual & overall shielding |
4 | DJYVP2R | Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, copper tape wrapping overall shielding |
5 | DJYP2VR | Instrumenation cable with flexible Cu core, PE insulation, PVC sheath,copper tape wrapping individual shielding |
6 | DJYP2VP2R | Instrumenation cable with flexible Cu core, PE insulation, PVC sheath,copper tape wrapping individual & overall shielding |
7 | DJYVP3R | Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping overall shielding |
8 | DJYP3VR | Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual shielding |
9 | DJYP3VP3 | Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual & overall shielding |
10 | DJYP3VP3R | Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual & overall shielding |
Packing and shipping
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
After-service commitment
Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.
pair no x core x dia | Reference outer diameter | |||||
DJYVP | DJYVPR | DJYPV | DJPVR | DJYPVP | DJYPVRP | |
1x2x0.5 | 7.7 | 7.9 | 7.7 | 7.9 | 8.1 | 8.2 |
2x2x0.5 | 15.1 | 15.5 | 15.9 | 16.4 | 18 | 18.5 |
4x2x0.5 | 16.3 | 16.5 | 16.7 | 17.4 | 18.8 | 19.5 |
5x2x0.5 | 17.6 | 18.2 | 19 | 19.8 | 21.1 | 21.9 |
7x2x0.5 | 19.3 | 20.0 | 20.8 | 21.8 | 22.9 | 28.9 |
1x2x0.75 | 8.0 | 6.2 | 8 | 8.2 | 8.4 | 8.5 |
2x2x0.75 | 15.4 | 15.7 | 16.2 | 16.5 | 18.3 | 18.5 |
4x2x0.75 | 16.3 | 16.7 | 17.6 | 18.0 | 20.7 | 21.1 |
5x2x0.75 | 18.6 | 19.0 | 20.1 | 20.6 | 22.2 | 22.7 |
7x2x0.75 | 20.2 | 20.6 | 21.9 | 22.4 | 24 | 24.5 |
1x2x1.0 | 8.4 | 8.6 | 8.5 | 8.6 | 8.8 | 9.0 |
2x2x1.0 | 15.9 | 16.2 | 16.7 | 17.0 | 18.8 | 19.1 |
4x2x1.0 | 18.1 | 18.6 | 19.3 | 10.9 | 21.4 | 22.0 |
5x2x1.0 | 20.0 | 20.3 | 21.8 | 22.2 | 23.2 | 24.1 |
7x2x1.0 | 21.3 | 22.2 | 23.0 | 24.6 | 25.1 | 26.2 |
1x2x1.5 | 9.4 | 9.6 | 9.4 | 9.6 | 9.8 | 10.1 |
2x2x1.5 | 10.0 | 10.3 | 10.9 | 19.3 | 21.0 | 21.4 |
3x2x1.5 | 18.8 | 19.2 | 19.0 | 20.3 | 22 | 22.5 |
4x2x1.5 | 20.5 | 21.1 | 21.8 | 22.5 | 23.9 | 24.5 |
5x2x1.5 | 22.3 | 23.0 | 23.7 | 24.6 | 25.8 | 26 |
7x2x1.5 | 24 | 24.8 | 25.8 | 26.8 | 28 | 29 |
