IEC Black XLPE Insulated Unshielded / Shielded Power Cable

China IEC Black XLPE Insulated Unshielded / Shielded Power Cable supplier

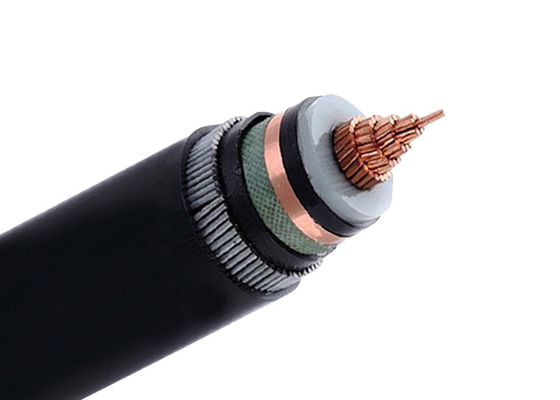

Large Image :  IEC Black XLPE Insulated Unshielded / Shielded Power Cable

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHAN CABLE
Certification: CE, KEMA IEC standard
Model Number: YJV

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: 13.9
Packaging Details: Wooden Iron Drum
Payment Terms: T/T, L/C
Supply Ability: 15000
Detailed Product Description
Cable Type: XLPE Insulated Power Cable Cable Shield: Unshielded/Shielded
Conductor Material: Copper/Aluminum Cable Size: 1.5-400mm2
Cable Structure: Single Core Cable Core: 2-5 Cores
Cable Application: Indoor Insulation Material: XLPE
Corporation: Shenghua Group Brand: Sh Cable
Highlight:

Shielded Power Cable

,

Shielded XLPE Insulated Power Cable

,

Black Power Cable

Product Description:

XLPE Insulated Power Cable

The XLPE Insulated Power Cable is designed for indoor applications, with 0.6/1kV voltage rating, and is available in 2-5 core cables ranging from 1.5-400mm2 in size. The cable is made of Cross-Linked Polyethylene (XLPE) insulation material, which is safe and reliable, providing superior electrical properties and mechanical strength. The cables are flame retardant and have excellent heat resistance, low temperature flexibility, and low smoke and halogen content.

The XLPE Insulated Power Cable is suitable for a variety of industries including power plants, hospitals, airports, and factories. It is ideal for use in high temperature and high voltage environments, and is capable of withstanding high loads in harsh conditions. The cable is designed for a long service life, withstanding over-currents, over-voltages, and short-circuit conditions. It is also corrosion-resistant, making it an ideal choice for use in wet or damp environments.

The XLPE Insulated Power Cable is designed for installation in a variety of indoor applications, and is compliant with international standards such as IEC, BS, ASTM, and VDE. The cables are easy to install and maintain, making them a cost-effective and reliable solution for any indoor power needs.

Applications:

The XLPE Insulated Power Cable from SHAN CABLE is a great choice for indoor applications. This cable features a model number of YJV, and has a voltage rating of 0.6/1kV. It's produced with PVC jacketing and is compliant with the IEC standard. The cable is made of either copper or aluminum, and is specially designed to provide excellent electrical insulation. Whether it's residential or commercial, the XLPE Insulated Power Cable is the perfect choice for indoor applications.

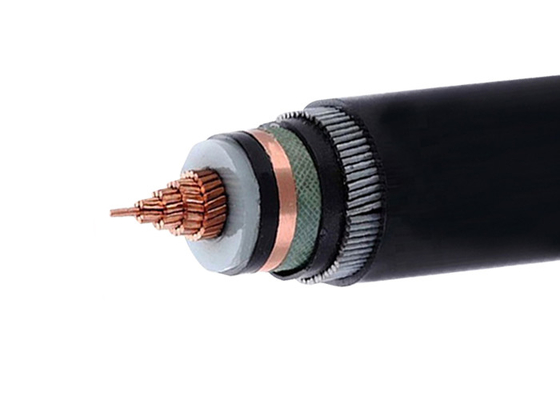

IEC Black XLPE Insulated Unshielded / Shielded Power Cable 0

Product Name YJY XLPE Insulation LSOH Sheathed Flame Retardant Power Cable
Model/Standard CU/XLPE/LSOH, IEC 60331, IEC 60502, IEC 60227, IEC 60331, IEC 601034, IEC 60754, GB/T 12706-91, GB306.1-2001, GB/T18380.3-2001, CE, CCC, KEMA
Conductor Material Circular stranded copper conductor, conforms to IEC 60228 class 2
Insulation Material XLPE/A
Inner Covering LSOH
Sheath Material LSOH, black
Insulation Color As per standards or customer requirement
Rated Voltage 0.6 kV
Max. Conductor Temperature Normal: 90°C; Short circuit (5 seconds): Maximum conductor temperature not exceeding 250°C
Min. Ambient Temperature Cable should be preheated if ambient temperature is below 0°C
Min. Bending Radius Single-core cable: 20(d+D)±5%; Multi-core cable: 15(d+D)±5%



Customization:

XLPE Insulated Power Cable

SHAN CABLE offers customized XLPE Insulated Power Cable for different applications. Our XLPE Insulated Power Cable is designed with model number YJV, and it is provided with insulation material of XLPE, voltage rating of 0.6/1kV, and cable jacket of PVC. The cable size is in the range of 1.5-400mm2 and cable core can be 2-5 cores.



Support and Services:

XLPE Insulated Power Cable Technical Support and Service

We provide technical support and services for our XLPE Insulated Power Cable products. Our experts are available to answer any questions you may have about the product and to provide guidance and advice on its installation and use. We also offer a range of installation and maintenance services, including on-site installation and repair, and remote diagnostics and troubleshooting. We also offer technical training courses to ensure that users are familiar with the product and its features, and can maximize its effectiveness and efficiency.



Packing and Shipping:

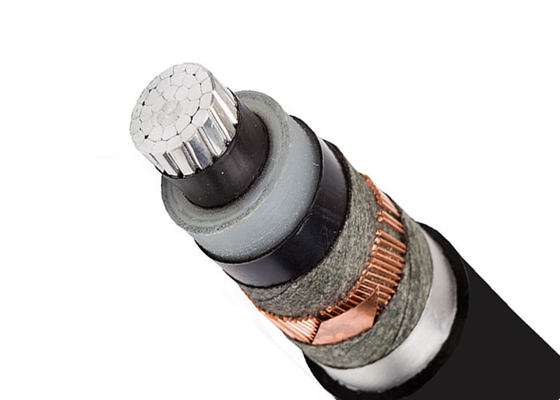

IEC Black XLPE Insulated Unshielded / Shielded Power Cable 1

Packaging and Shipping of XLPE Insulated Power Cable

XLPE Insulated Power Cable should be handled with care during packaging and shipping.

  • Cables should be stored in a dry, dust-free environment and should be kept away from direct sunlight.
  • Cables should be packed in a sealed plastic bag with desiccant.
  • Cables should be placed in a wooden box before shipping.
  • All boxes should be marked with product information (including product name, type, quantity, etc.)
  • Shipping information (such as shipping address, contact information, etc.) should also be clearly marked on the boxes.
  • It is recommended to use a reliable shipping company for delivery.

```

FAQ:

Q1: What is SHAN CABLE YJV XLPE Insulated Power Cable?

A1: SHAN CABLE YJV XLPE Insulated Power Cable is a type of electrical cable used to transmit power from one place to another. It is made of high-quality XLPE insulation material and is designed for applications with voltage ratings up to 1kV.

Q2: What are the features of SHAN CABLE YJV XLPE Insulated Power Cable?

A2: SHAN CABLE YJV XLPE Insulated Power Cable features excellent electrical performance, flame retardant, moisture resistance, and high mechanical strength. It is also designed for long-term operation in tough environments.

Q3: What is the voltage rating of SHAN CABLE YJV XLPE Insulated Power Cable?

A3: SHAN CABLE YJV XLPE Insulated Power Cable has a voltage rating of up to 1kV.

Q4: What is the place of origin of SHAN CABLE YJV XLPE Insulated Power Cable?

A4: SHAN CABLE YJV XLPE Insulated Power Cable is produced in Shanghai, China.

Q5: Are SHAN CABLE YJV XLPE Insulated Power Cable fire-resistant?

A5: Yes, SHAN CABLE YJV XLPE Insulated Power Cable is flame retardant and designed for long-term operation in tough environments.

IEC Black XLPE Insulated Unshielded / Shielded Power Cable 2
