Product Details:
Payment & Shipping Terms:
|
| Rated Voltage: | 0.6/1kV | Manufacturer: | No.2 In China Cable Industry |
|---|---|---|---|
| Cross Section Area: | 1.5-1000 Sqmm | Outer Sheath Color: | Black Or As Per Request |
| Core Mark: | Number Or Color Strip For The Main Core | Cable Mark: | Ink Printing Or Embossing |
| Packing: | Treaty Steel Wooden Drum | Drum Size: | Max. 2240 Mm (Height) * 2240 Mm( Length) * 1400 Mm (width) |
| Drum Mark: | Paint Spraying | Corporation: | Shenghua Group |
| Brand: | Sh Cable | ||
| Highlight: | Class 2 IEC 60228 Electrical Cable,Xlpe Multi Core Electrical Cable |
||

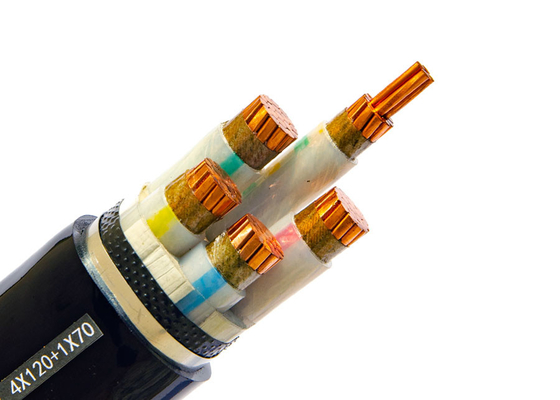

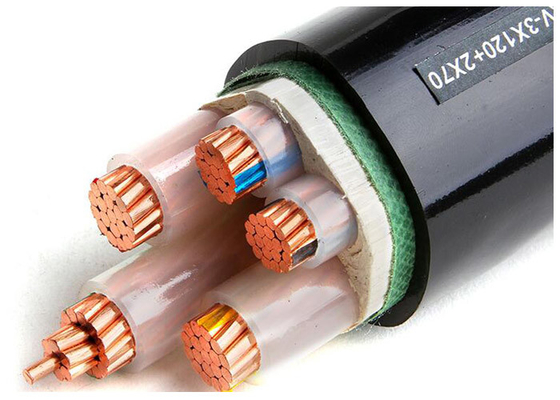

Low voltage multi-core Copper Electrical XLPE Insulated Power Cable LV with Certificates
90°C Continuous Rating + 160°C Emergency Overload for Fast Chargers & Underground Installations
With global EV sales projected to exceed 40 million annually by 2030 (IEA), overheating and durability issues in charging cables are critical bottlenecks. Shenghua Power Cable addresses this with low-voltage XLPE-insulated cables, engineered to handle 90°C continuous heat and 160°C short-term overloads—validated in 150kW+ DC fast chargers and underground charging stations. Our CE + KEMA-certified designs combine XLPE insulation and FR-PVC sheathing to eliminate thermal degradation risks while ensuring EMI shielding for stable power delivery
Thermal Resilience:
EMI Shielding:
Mechanical Durability:
| Parameter | Shenghua XLPE Cable | Industry Standard |
|---|---|---|
| Rated Voltage | 0.6/1kV | 0.6/1kV |
| Max. Conductor Temp | 90°C (160°C emergency) | 70°C (PVC) |
| Bending Radius | 5× cable OD | 8× cable OD |
| EMI Shielding | 40 dB attenuation at 1GHz | Unshielded (typical) |
| Certifications | CE, KEMA, RoHS, CCC | CE (basic) |
Applications: XLPE Insulated Cable is used as power distribution and transmission line at rated voltage 0.6/1KV.
Construction:
| Conductor | Copper Conductor as per IEC 60228,Class 2 |
| Circular or Shaped conductor | |
| Flexible conductor(class 5) optional. | |
| Insulation | XLPE (Cross-Linked Polyethylene) rated at 90℃,many color optional |
| Metallic Screen optional | Copper tape or copper wires braiding optional |
| Sheath | PVC or FR-PVC type ST2 to IEC 60502, black or red or customization |
Ordering Advice
Rated Voltage
Application Standard: IEC/BS/UL/GB
Number of Cores, and indenfication for the cable cores
Conductor Size & Construction
Type of Insulation
Armored or unarmored. If armor, the armor type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
Other Requirement
Technical data: Rated voltage:0.6/1kV Low Voltage
Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core without armor
15 x cable O.D for multi core without armor
15 x cable O.D for single core with armor
12 x cable O.D for multi core with armor
Standards: International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS, DIN, VDE and ICEA upon request
Installation
1. The installation temperature should not over 20℃, If the ambient temperature is lower than 0℃, the cable should be preheated.
2. The bending radius of cable should not less than 8 times.
3. After installation, the cable should with stand voltage test for 15min. 3.5kv D.C.
Technical parameter:
Data Sheet for the Four Core Power Cable
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packing and shipping: We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
Aftersales Service
We, Shanghai Shenghua Cable Group are specialized in R&D and manufacturing cables and wires. We have passed ISO9001:2008 International Quality System Certification(ZDHY), which covers the whole process of the management of the enterprise. A comprehensive quality control system has been put into place to ensure products meet international standards. Our tenet is: Set up top-ranking enterprise, high-class product, excellent service and well-known brand. "Abide by quality assurance, dedicated to provide users with reliable products always" is our commitment to quality. The products of our company are insured by PICC (the People's Insurance Company of China). Moreover, we offer specific guarantees as below:
1．We guarantee that we will comply with the requirements of warranty period specified in the contract.
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion
thereof as the case may be, have been delivered to and accepted at the final destination
indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or
place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
