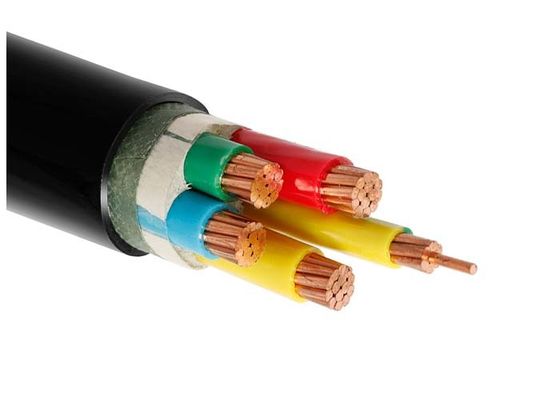

Shanghai Shenghua Cable Group PVC Sheath 3Cx300 Three Core XLPE Insulated Power Cable

Three Core Copper Conductor XLPE Insulation 26/35KV 3Cx300 Electrical Cable

Powering Critical Infrastructure: Shanghai Shenghua’s 35kV XLPE Cable Solutions for High-Voltage Reliability

In high-stakes energy transmission systems—from urban substations to industrial megaprojects—​​voltage stability and operational safety define success​​. Shanghai Shenghua Cable Group engineers uncompromising resilience with its ​​26/35kV 3Cx300 XLPE Insulated Power Cable​​, featuring triple-shielded copper conductors and industrial-grade armoring for mission-critical power networks.

Engineering Excellence: The Shenghua Difference

​​Multi-Layered Defense Architecture​​

1. ​​Conductor​​: Class 2 stranded copper (IEC 60228-compliant) ensures optimal conductivity and flexibility, minimizing resistive losses at 300mm² cross-sections


2. ​​EMI Shielding​​: Dual extruded semi-conductive layers + copper tape screen neutralize electromagnetic interference from transformers or heavy machinery


3. ​​Insulation​​: XLPE core withstands 250°C short-circuit spikes (5 sec) and continuous 90°C operation—40% higher thermal tolerance than PVC alternatives


4. ​​Sheathing​​: Flame-retardant PVC (FR-PVC) options comply with EN 60332-1-2, suppressing fire propagation in tunnels or industrial plants



Performance Benchmarks: Where Shenghua Dominates

Applications Demanding 35kV XLPE Cables

1. ​​Urban Power Grids​​
   Direct-buried Shenghua cables (STA/SWA armoured) prevent soil compression and rodent damage in subway networks and hospitals, with LSOH sheathing reducing toxic fumes during fires


2. ​​Heavy Industry​​
   Copper conductors handle 300mm² cross-sections for crane systems and compressors in steel mills—supporting 600A+ short-circuit currents


3. ​​Renewable Energy Farms​​
   XLPE insulation resists salt/UV degradation, while FR-PVC sheathing protects against abrasion in wind/solar trench installations



Why Global Engineers Trust Shenghua

• ​​40+ Years of Expertise​​: OEM customization for voltages (3.6kV–36kV), armoring (STA/SWA), and sheaths (PVC/LSOH/FR-PVC)


• ​​Global Certifications​​: KEMA, CE, RoHS, GB/T 12706.2, with 12-month PICC-backed warranty


• ​​Rapid Deployment​​: Wooden/steel drum packaging with moisture-proof sealing; 7–15-day delivery for urgent projects


• ​​Sustainability​​: RoHS-compliant materials reduce environmental impact without compromising durability

Construction

Conductor : Stranded Copper Conductor Class2

Conductor Screen: Semi-conductor

Insulation : XLPE insulation

Insulation Screen: Semi-conductor

Screen : Copper tape

Sheath : PVC or Flame-retardant -PVC

Insulation Color :Red,Yellow,Blue

Outer sheath Color:Black.

Applications

The medium voltage cable can be choosed for laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards

International: IEC 60502-2, IEC 60228, VDE,ASTM,BS

Cable Type :CU/XLPE/CTS/PVC-26/35 KV 3Cx300 SQMM

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 26/35(40.5)KV

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core

15 x cable O.D for multi core

Certificates

CE, RoHS, KEMA and more others at request

Commercial Items: FOB Shanghai Port or CIF port as per request. MOQ: 800m

Payment terms: 30% T/T before production, 70% T/T before delivery

Packing: Wooden Iron drum, whole steel wooden drum if required by client side.
