Shanghai Shenghua Cable XLPE Insulation PVC Sheath Copper Conductor Cable

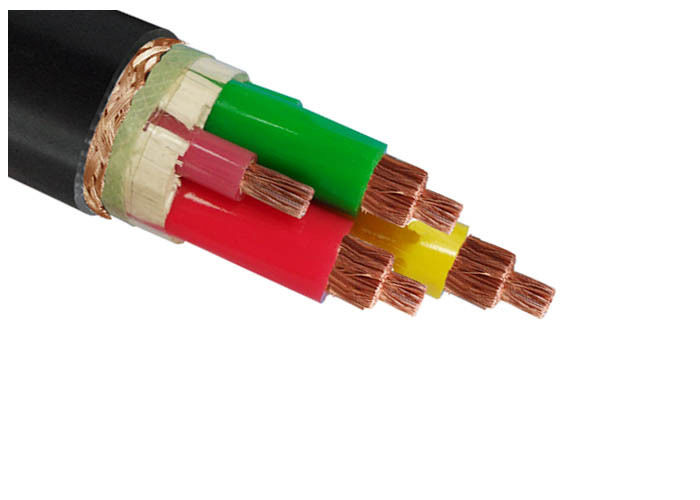

Large Image : Shanghai Shenghua Cable XLPE Insulation PVC Sheath Copper Conductor Cable

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	SHANCABLE
Certification:	ISO,CE,IEC,TUV,KEMA
Model Number:	N2XY 0.6-1V

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum
Delivery Time:	10 Days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Detailed Product Description

Conductor:	Stranded Copper Conductor	Insulation:	XLPE
Sheath:	LSZH	Test Voltage:	3.5KV/5mins
Product Name:	XLPE Insulated PVC Sheathed Power Cable	Core:	Multi-core
Corporation:	Shenghua Group	Brand:	Sh Cable
Highlight:	PVC Sheath Copper Conductor Cable , Shanghai Shenghua Cable , Copper Conductor Cable

N2XY POWER CABLE COPPER

N2XY Copper Conductor XLPE Insulation PVC Sheath Power Cable

Powering Modern Infrastructure: Shanghai Shenghua’s XLPE Insulated Cables Set New Standards

In the backbone of industrial power networks—from smart grids to renewable energy farms—electrical resilience defines operational success. Shanghai Shenghua Cable Group delivers uncompromising reliability with its N2XY Copper Conductor XLPE Insulated Power Cables, engineered for 0.6/1kV transmission in demanding environments where heat, moisture, and mechanical stress threaten conventional solutions.

The XLPE Advantage: Why Shenghua Outperforms

Thermal & Electrical Superiority:
Shenghua’s XLPE insulation operates at 90°C continuously and withstands 250°C short-circuit spikes (5 sec)—40% higher thermal tolerance than PVC alternatives

. Combined with low dielectric losses, this ensures stable power transmission under extreme loads.
Eco-Safe Design:
LSZH (Low Smoke Zero Halogen) sheathing minimizes toxic fumes during fires, complying with EN 60332-1-2 for critical spaces like tunnels or hospitals
Mechanical Resilience:
Stranded copper conductors (IEC 60228 Class 2) + optimized bending radii (15× diameter for multicore) enable flexible installation in ducts, trays, or direct burial

Technical Dominance: Key Specifications

Parameter	N2XY 3×150+2×70	N2XY 4×185+1×95	Performance Edge
Current Rating	325A (air) / 345A (soil)	375A (air) / 390A (soil)	Powers heavy machinery in steel mills/data centers
Conductor Resistance	0.124 Ω/km (20°C)	0.0991 Ω/km (20°C)	18% lower energy loss vs. aluminum cores
Test Voltage	3.5kV/5min	3.5kV/5min	Exceeds IEC 60502 safety thresholds 3
Weight	6,519 kg/km	9,055 kg/km	Lightweight yet robust for long-span installations

Applications Where Shenghua Excels

Industrial Power Backbones:
Multicore configurations (e.g., 3×240+2×120) deliver 440A in soil for cranes, compressors, and CNC systems
Renewable Energy Farms:
XLPE resists UV/salt degradation, while LSZH sheathing ensures safety in solar/wind trench installations
Urban Infrastructure:
Direct-buried cables with STA armoring (optional) prevent rodent damage in subway grids and hospitals

Global Standards, Localized Innovation

Shenghua’s cables comply with:

International: IEC 60502, VDE 0276, BS, DIN
Regional: GB/T 12706.2, CE, RoHS, KEMA

Every batch undergoes 3.5kV/5min AC testing—validated by ISO 9001 and PICC-backed 12-month warranties

Why Engineers Specify Shenghua

End-to-End Customization: Tailor cores (1–5), voltages (0.6kV–35kV), armoring (STA/SWA), and sheaths (PVC/LSZH/FR-PVC)
Rapid Deployment: Wooden/steel drum packaging with moisture-proof sealing; 7–15-day delivery for urgent projects
Sustainability: RoHS-compliant materials reduce environmental impact without compromising durability

Constructions

Conductor : Stranded copper conductor, Class2as per IEC 60228

Insulation : XLPE

Sheath : LSZH

Test Voltage :3.5KV/5mins

Applications

The cable is suitable for the fixed laying in the AC 50Hz,for electric transmission.

Standards

International: VDE0276 ,IECASTM,JS,BS

China: GB/T 12706, GB/T 19666

Other standards such as BS,DIN and ICEA upon request

Certificates

Rated voltage:0.6/1kV

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core

15 x cable O.D for multi core

CE, RoHS, , KEMA and more others at request

Commercial Items: MOQ: 200m

Payment terms: 30% T/T before production, 70% T/T before delivery

Packing : Wooden Iron drum

Specifications

Nom. Cross-section of conductor	Strands No./Dia. Of Conductor	Insulation Thickness	Sheath Thickness	Approx. O.D.	Approx. Weight	Max. D.C Resistance of Conductor (20 ℃)	Testing Voltage A.C	Current Rating
mm2	pc/mm	mm	mm	(mm)	kg/km	Ω /km	kV/5min	In air (A)	In soil(A)
5 × 4	1/2.25	0.7	1.8	14.5	349	4.61	3.5	34	45
5 × 6	1/2.76	0.7	1.8	15.8	460	3.08	3.5	43	57
5× 10	7/1.38	0.7	1.8	19.0	699	1.83	3.5	60	77
5 × 16	7/1.78	0.7	1.8	22.0	1013	1.15	3.5	83	105
5 × 25	7/2.14	0.9	1.8	25.0	1566	0.727	3.5	105	125
5 × 35	7/2.52	0.9	1.9	28.0	2083	0.524	3.5	125	155
5× 50	10/2.52	1.0	2.0	31.0	2921	0.387	3.5	160	185
5× 70	14/2.52	1.1	2.1	36.0	3974	0.268	3.5	200	225
3 × 4+ 2 × 2.5	1/2.25+1/1.38	0.7	1.8	13.9	309	4.61	3.5	34	45
3 × 6+ 2 × 4	1/2.76+1/2.25	0.7	1.8	15.3	413	3.08	3.5	43	57
3 × 10+ 2 × 6	7/1.38+1/2.8	0.7	1.8	17.7	603	1.83	3.5	60	77
3 × 16+ 2 × 10	7/1.78+7/1.38	0.7	1.8	20.7	888	1.15	3.5	83	105
3 × 25+ 2 × 16	7/2.14+7/1.78	0.9	1.8	24.0	1342	0.727	3.5	105	125
3 × 35+ 2 × 16	7/2.52+7/1.78	0.9	1.8	25.7	1647	0.524	3.5	125	155
3 × 50+ 2 × 25	10/2.52+7/2.14	1.0	1.9	28.8	2386	0.387	3.5	160	185
5 × 6	1/2.76	0.7	1.8	15.8	460	3.08	3.5	43	57
3 × 70+ 2 × 35	14/2.52+7/2.52	1.1	2.0	32.4	3201	0.268	3.5	200	225
3 × 95+ 2 × 50	19/2.52+10/2.52	1.1	2.1	35.6	4269	0.193	3.5	245	270
3 × 120+ 2 × 70	24/2.52+14/2.52	1.2	2.3	41.1	5437	0.153	3.5	285	310
3 × 150+ 2 × 70	30/2.52+14/2.52	1.4	2.4	43.6	6519	0.124	3.5	325	345
3 × 185+ 2 × 95	37/2.52+19/2.52	1.6	2.5	49.1	8101	0.0991	3.5	375	390
3 × 240+ 2 × 120	48/2.52+24/2.52	1.7	2.7	54.2	10340	0.0754	3.5	440	450
3 × 300+ 2 × 150	61/2.52+30/2.52	1.8	2.8	55.6	12810	0.0601	3.5	505	515
4 × 10+ 1 × 6	7/1.38+1/2.8	0.7	1.8	18.3	649	1.83	3.5	60	77
4 × 16+ 1 × 10	7/1.78+7/1.38	0.7	1.8	21.1	965	1.15	3.5	83	105
4 × 25+ 1 × 16	7/2.14+7/1.78	0.9	1.8	24..5	1456	0.727	3.5	105	125
4 × 35+ 1 × 16	7/2.52+7/1.78	0.9	1.8	26.9	1863	0.524	3.5	125	155
4 × 50+ 1 × 25	10/2.52+7/2.14	1.0	1.9	28.8	2633	0.387	3.5	160	185
4 × 70+ 1 × 35	14/2.52+7/2.52	1.1	2.0	32.4	3565	0.268	3.5	200	225
4 × 95+ 1 × 50	19/2.52+10/2.52	1.1	2.1	35.6	4735	0.193	3.5	245	270
4 × 120+ 1 × 70	24/2.52+14/2.52	1.2	2.3	41.1	5977	0.153	3.5	285	310
4 × 150+ 1 × 70	30/2.52+14/2.52	1.4	2.4	43.6	7276	0.124	3.5	325	345
4 × 185+ 1 × 95	37/2.52+19/2.52	1.6	2.5	49.1	9055	0.0991	3.5	375	390
4 × 240+ 1 × 120	48/2.52+24/2.52	1.7	2.7	54.2	11567	0.0754	3.5	440	450
4 × 300+ 1 × 150	61/2.52+30/2.52	1.8	3.1	66.3	14321	0.0601	3.5	505	515
