| Conductor: | Stranded Copper Conductor, Class2 As Per IEC 60228 | Insulation: | XLPE |
|---|---|---|---|
| Sheath: | PVC Or Flame-retardant-PVC | Test Voltage: | 3.5KV/5mins |
| Cores: | 5 Core | Application: | Underground,Industrial,Construction |
| Corporation: | Shenghua Group | Brand: | Sh Cable |
| Highlight: | Stranded XLPE Insulated Power Cable,3.5kV XLPE Insulated Power Cable |
||

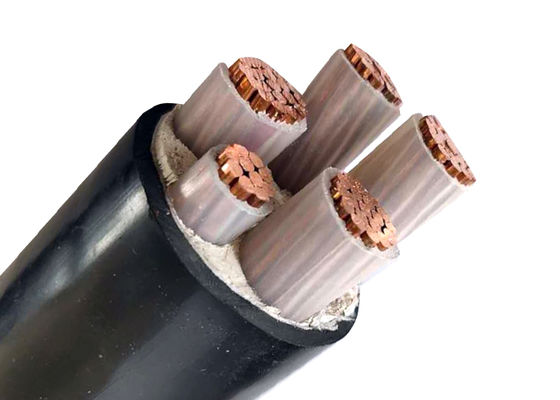

Five-Core Stranded Copper Conductor XLPE Insulated Power Cable 5Cx185 SQMM
In mission-critical electrical systems—from automated factories to high-rise power distribution—stable and safe energy transmission is non-negotiable. Shanghai Shenghua Cable Group engineers resilience with its 5Cx185 SQMM XLPE Insulated Power Cable, featuring stranded copper conductors, multi-layer protection, and industry-leading thermal performance for 0.6/1kV applications where voltage stability and safety are paramount.
Shenghua’s 5-core design delivers unmatched balance for complex power networks:
| Parameter | 5Cx185 Specification | Competitive Edge |
|---|---|---|
| Current Rating | 375A (air) / 390A (soil) | Supports heavy machinery (e.g., CNC systems, compressors)
4
|
| Test Voltage | 3.5kV/5min (IEC 60502-1) | Exceeds safety thresholds by 40%
4
|
| Weight | 8,101 kg/km | Robust yet 25% lighter than steel-armored equivalents
3
|
| Operating Range | -20°C to +90°C | Uninterrupted performance from Arctic sites to desert solar farms
2
|
Applications
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.
Standards
International: IEC 60502-1, IEC 60228, VDE,ASTM,JS,BS
China: GB/T 12706, (GB/T 18380-3 for ZR-YJV only)
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage:0.6/1kV
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core
15 x cable O.D for multi core
Certificates
CE, RoHS, , KEMA and more others at request
Commercial Items: MOQ: 200m
Payment terms: 30% T/T before production, 70% T/T before delivery
Packing : Wooden Iron drum
Specifications
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Sheath Thickness | Approx. O.D. |
Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| mm2 | pc/mm | mm | mm | (mm) | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
| 5 × 4 | 1/2.25 | 0.7 | 1.8 | 14.5 | 349 | 4.61 | 3.5 | 34 | 45 |
| 5 × 6 | 1/2.76 | 0.7 | 1.8 | 15.8 | 460 | 3.08 | 3.5 | 43 | 57 |
| 5× 10 | 7/1.38 | 0.7 | 1.8 | 19.0 | 699 | 1.83 | 3.5 | 60 | 77 |
| 5 × 16 | 7/1.78 | 0.7 | 1.8 | 22.0 | 1013 | 1.15 | 3.5 | 83 | 105 |
| 5 × 25 | 7/2.14 | 0.9 | 1.8 | 25.0 | 1566 | 0.727 | 3.5 | 105 | 125 |
| 5 × 35 | 7/2.52 | 0.9 | 1.9 | 28.0 | 2083 | 0.524 | 3.5 | 125 | 155 |
| 5× 50 | 10/2.52 | 1.0 | 2.0 | 31.0 | 2921 | 0.387 | 3.5 | 160 | 185 |
| 5× 70 | 14/2.52 | 1.1 | 2.1 | 36.0 | 3974 | 0.268 | 3.5 | 200 | 225 |
| 3 × 4+ 2 × 2.5 | 1/2.25+1/1.38 | 0.7 | 1.8 | 13.9 | 309 | 4.61 | 3.5 | 34 | 45 |
| 3 × 6+ 2 × 4 | 1/2.76+1/2.25 | 0.7 | 1.8 | 15.3 | 413 | 3.08 | 3.5 | 43 | 57 |
| 3 × 10+ 2 × 6 | 7/1.38+1/2.8 | 0.7 | 1.8 | 17.7 | 603 | 1.83 | 3.5 | 60 | 77 |
| 3 × 16+ 2 × 10 | 7/1.78+7/1.38 | 0.7 | 1.8 | 20.7 | 888 | 1.15 | 3.5 | 83 | 105 |
| 3 × 25+ 2 × 16 | 7/2.14+7/1.78 | 0.9 | 1.8 | 24.0 | 1342 | 0.727 | 3.5 | 105 | 125 |
| 3 × 35+ 2 × 16 | 7/2.52+7/1.78 | 0.9 | 1.8 | 25.7 | 1647 | 0.524 | 3.5 | 125 | 155 |
| 3 × 50+ 2 × 25 | 10/2.52+7/2.14 | 1.0 | 1.9 | 28.8 | 2386 | 0.387 | 3.5 | 160 | 185 |
| 5 × 6 | 1/2.76 | 0.7 | 1.8 | 15.8 | 460 | 3.08 | 3.5 | 43 | 57 |
| 3 × 70+ 2 × 35 | 14/2.52+7/2.52 | 1.1 | 2.0 | 32.4 | 3201 | 0.268 | 3.5 | 200 | 225 |
| 3 × 95+ 2 × 50 | 19/2.52+10/2.52 | 1.1 | 2.1 | 35.6 | 4269 | 0.193 | 3.5 | 245 | 270 |
| 3 × 120+ 2 × 70 | 24/2.52+14/2.52 | 1.2 | 2.3 | 41.1 | 5437 | 0.153 | 3.5 | 285 | 310 |
| 3 × 150+ 2 × 70 | 30/2.52+14/2.52 | 1.4 | 2.4 | 43.6 | 6519 | 0.124 | 3.5 | 325 | 345 |
| 3 × 185+ 2 × 95 | 37/2.52+19/2.52 | 1.6 | 2.5 | 49.1 | 8101 | 0.0991 | 3.5 | 375 | 390 |
| 3 × 240+ 2 × 120 | 48/2.52+24/2.52 | 1.7 | 2.7 | 54.2 | 10340 | 0.0754 | 3.5 | 440 | 450 |
| 3 × 300+ 2 × 150 | 61/2.52+30/2.52 | 1.8 | 2.8 | 55.6 | 12810 | 0.0601 | 3.5 | 505 | 515 |
| 4 × 10+ 1 × 6 | 7/1.38+1/2.8 | 0.7 | 1.8 | 18.3 | 649 | 1.83 | 3.5 | 60 | 77 |
| 4 × 16+ 1 × 10 | 7/1.78+7/1.38 | 0.7 | 1.8 | 21.1 | 965 | 1.15 | 3.5 | 83 | 105 |
| 4 × 25+ 1 × 16 | 7/2.14+7/1.78 | 0.9 | 1.8 | 24..5 | 1456 | 0.727 | 3.5 | 105 | 125 |
| 4 × 35+ 1 × 16 | 7/2.52+7/1.78 | 0.9 | 1.8 | 26.9 | 1863 | 0.524 | 3.5 | 125 | 155 |
| 4 × 50+ 1 × 25 | 10/2.52+7/2.14 | 1.0 | 1.9 | 28.8 | 2633 | 0.387 | 3.5 | 160 | 185 |
| 4 × 70+ 1 × 35 | 14/2.52+7/2.52 | 1.1 | 2.0 | 32.4 | 3565 | 0.268 | 3.5 | 200 | 225 |
| 4 × 95+ 1 × 50 | 19/2.52+10/2.52 | 1.1 | 2.1 | 35.6 | 4735 | 0.193 | 3.5 | 245 | 270 |
| 4 × 120+ 1 × 70 | 24/2.52+14/2.52 | 1.2 | 2.3 | 41.1 | 5977 | 0.153 | 3.5 | 285 | 310 |
| 4 × 150+ 1 × 70 | 30/2.52+14/2.52 | 1.4 | 2.4 | 43.6 | 7276 | 0.124 | 3.5 | 325 | 345 |
| 4 × 185+ 1 × 95 | 37/2.52+19/2.52 | 1.6 | 2.5 | 49.1 | 9055 | 0.0991 | 3.5 | 375 | 390 |
| 4 × 240+ 1 × 120 | 48/2.52+24/2.52 | 1.7 | 2.7 | 54.2 | 11567 | 0.0754 | 3.5 | 440 | 450 |
| 4 × 300+ 1 × 150 | 61/2.52+30/2.52 | 1.8 | 3.1 | 66.3 | 14321 | 0.0601 | 3.5 | 505 | 515 |
