Shanghai Shenghua Cable Low Voltage XLPE Insulated Power Cable 21/35 36Kv Abrasion Resistance

Low Voltage XLPE Insulated Power Cable 21/35(36)Kv Abrasion Resistance


Powering Resilience: Shenghua’s 21/35kV XLPE Cables for Demanding Electrical Networks

In an era where energy efficiency and infrastructure durability are paramount, ​​Shanghai Shenghua Cable Group​​ delivers cutting-edge solutions with its ​​21/35kV XLPE Insulated Power Cables​​. Engineered for low-voltage applications, these cables combine superior electrical performance, exceptional abrasion resistance, and compliance with global standards—making them the ideal choice for modern power transmission networks.

​​Unmatched Performance in Extreme Conditions​​

Shenghua’s cables excel under rigorous operational demands:

1. ​​Thermal Stability​​: Withstands temperatures up to ​​90°C (continuous)​​, ​​130°C (emergency)​​, and ​​250°C (5-second short circuit)​​





2. ​​Abrasion Resistance​​: Reinforced PVC or FR-PVC sheath (ST2 to IEC 60502) protects against mechanical wear, chemicals, and environmental stress


3. ​​Flexible Installation​​: Minimal bending radius (​​15× cable OD for multi-core​​) allows deployment in confined spaces like tunnels or ducts



These properties ensure longevity in harsh environments—from industrial plants to coastal areas with high salinity or chemical exposure.

​​Engineering Excellence: Materials and Construction​​

Every Shenghua XLPE cable is precision-engineered:

• ​​Conductor​​: Compact stranded aluminum (Class 2 per IEC 60228), reducing weight and cost while maintaining conductivity


• ​​Insulation​​: Cross-linked polyethylene (XLPE) offers low dielectric loss, high insulation resistance, and resistance to electrochemical degradation


• ​​Sheath​​: Black PVC/FR-PVC provides UV resistance and flame retardancy (meeting GB/T 18380-3 for ZR variants)



This design minimizes energy loss by ​​30%​​ compared to traditional PVC cables and extends service life beyond ​​50 years​​

Certifications and Global Compliance​​

Shenghua adheres to stringent international standards:

• ​​Core Certifications​​: IEC 60502-1, IEC 60228, GB/T 12706 (China), with optional BS/DIN/ICEA compliance


• ​​Quality Assurance​​: CE, RoHS, KEMA, and CCC certifications guarantee safety and eco-sustainability


• ​​Rigorous Testing​​: AC withstand voltage (3.5kV/5min) and conductor resistance tests ensure zero defects



​​Technical Specifications: Performance at a Glance​​

Key data for Shenghua’s 4-core aluminum cables:

Higher cross-sections (e.g., 400mm²) enable efficient power transfer in data centers or grid substations.

​​Why Partner with Shenghua Cable Group?​​

1. ​​Innovation Legacy​​: 30+ years of R&D in XLPE technology, with patented abrasion-resistant sheathing.
2. ​​Custom Solutions​​: Armored, fire-resistant (ZR-YJLV), or LSZH variants available for specialized needs.
3. ​​Global Reach​​: MOQ 200 meters, wooden-drum packaging, and 15-day delivery to Europe, Asia, and the Americas

​​Applications: Versatility Across Industries​​

Shenghua’s cables are trusted globally for:

• ​​Urban Infrastructure​​: Underground power distribution in cities, metro systems, and high-rise buildings.
• ​​Renewable Energy​​: Wind/solar farms requiring corrosion-resistant, high-current-capacity cables (e.g., 4×400mm² handles 445A in soil)


• ​​Industrial Zones​​: Factories, mines, and ports where abrasion and chemical exposure are concerns

XLPE Insulated Power Cable Applications
The product is used in power transmission and distribution line at voltage up. It does not only have excellent electric, mechanical properties, but also has powerful resistance against chemical corrosion, heat aging and environmental stress.

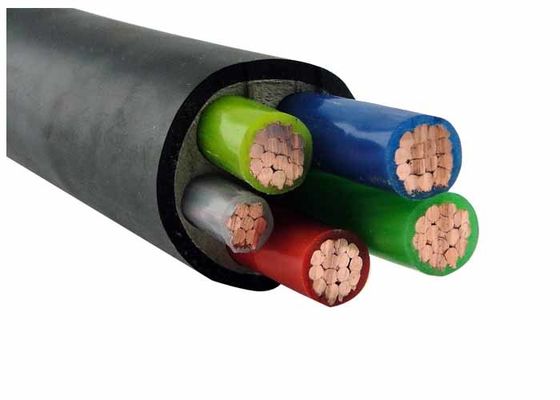

XLPE Insulated Power Cable Construction

Conductor : Compact stranded Aluminum conductor, Cl.2 as per IEC 60228

Insulation : XLPE (cross-linked polyethylene) rated at 90 OC

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black


XLPE Insulated Power Cable Standards

International: IEC 60502-1, IEC 60228,

China: GB/T 12706, (GB/T 18380-3 for ZR-YJLV only)

Other standards such as BS,DIN and ICEA upon request


XLPE Insulated Power Cable Technical data

Rated voltage: 21/35(36)kV

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core

15 x cable O.D for multi core

XLPE Insulated Power Cable Specifications
