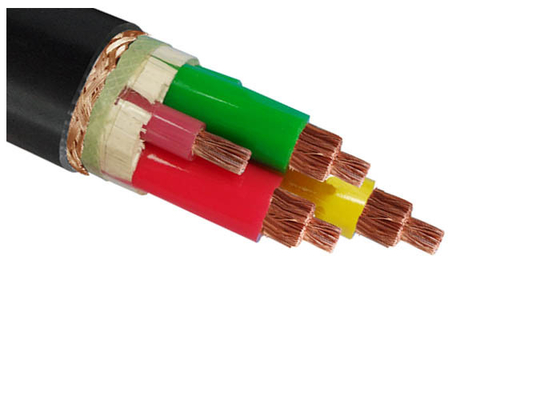

Shenghua XLPE Insulated Aluminum Power Cable 1kV Low Voltage

Large Image : Shenghua XLPE Insulated Aluminum Power Cable 1kV Low Voltage

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	SHANCABLE
Certification:	ISO,CE,IEC,TUV,KEMA
Model Number:	YJLV 0.6-1KV

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum
Delivery Time:	10 Days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Detailed Product Description

Conductor:	Compact Stranded Aluminum Conductor, Cl.2 As Per IEC 60228	Insulation:	XLPE (cross-linked Polyethylene) Rated At 90 OC
Conductor Screen::	Semi-conductor	Sample:	Free
Insulation Color:	Red,Yellow,Blue	Operating Temp:	90 Degree
Sheath:	PVC Or FR-PVC Type ST2 To IEC 60502, Black	Screen:	Copper Tape
Corporation:	Shenghua Group	Brand:	Sh Cable
Highlight:	XLPE insulated aluminum power cable , low voltage XLPE power cable , 1kV aluminum power cable

Shenghua XLPE Insulated Power Cable 1kV | Aluminum Conductor Low-Voltage Solution

Product Specifications

Attribute	Value
Conductor	Compact stranded Aluminum conductor, Cl.2 as per IEC 60228
Insulation	XLPE (cross-linked polyethylene) rated at 90°C
Conductor Screen	Semi-conductor
Sample	Free
Insulation Color	Red, Yellow, Blue
Operating Temp	90°C
Sheath	PVC or FR-PVC type ST2 to IEC 60502, black
Screen	Copper tape
Corporation	Shenghua Group
Brand	Sh Cable

Product Overview

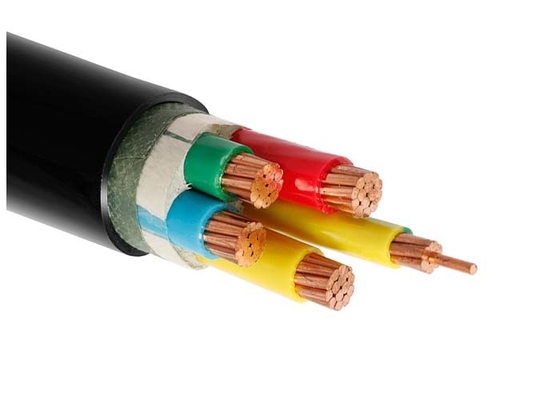

Multi Core Aluminum Conductor XLPE Insulated Power Cable Low Voltage 1kV

Shenghua XLPE Insulated Power Cable revolutionizes low-voltage power transmission with unmatched reliability, engineered to exceed global standards while delivering unparalleled performance in diverse environments.

Key Features

Superior Conductor Design: Compact stranded aluminum conductors (Class 2 per IEC 60228) optimize conductivity while reducing cable weight and installation costs
XLPE Insulation: Cross-linked polyethylene rated at 90°C ensures high electric strength, exceptional thermal aging resistance, and resilience against environmental stress and chemical corrosion
Robust Sheathing: PVC or flame-retardant PVC (ST2 to IEC 60502) provides mechanical protection and fire safety, ideal for indoor/outdoor laying

Applications

Underground power networks in urban infrastructure
Industrial plants and transformer stations requiring stable 90°C operation
Renewable energy projects where corrosion resistance and flexibility are critical

Standards & Certifications

International: IEC 60502-1, IEC 60228
China: GB/T 12706 (GB/T 18380-3 for flame-retardant variants)
On-Demand Certifications: CE, RoHS, KEMA, plus BS (UK), DIN (Germany), or ICEA (North America) support

Technical Specifications

Conductor (mm²)	Approx. O.D. (mm)	Max. DC Resistance (Ω/km)	Current Rating (Soil, A)	Short-Circuit Withstand
4 × 50	23	0.641	145	250°C (≤5 sec)
4 × 185	42	0.164	305	250°C (≤5 sec)
4 × 400	66	0.078	445	250°C (≤5 sec)

Data validated under ambient ≥0°C, with bending radii ≤15× O.D. (multi-core)

Construction Details

Conductor: Compact stranded Aluminum conductor, Cl.2 as per IEC 60228
Insulation: XLPE (cross-linked polyethylene) rated at 90°C
Sheath: PVC or FR-PVC type ST2 to IEC 60502, black

Detailed Specifications

Nom. Cross-section of conductor (mm²)	Strands No./Dia. Of Conductor (pc/mm)	Insulation Thickness (mm)	Sheath Thickness (mm)	Approx. O.D. (mm)	Approx. Weight (kg/km)	Max. D.C Resistance of Conductor (20°C) (Ω/km)	Testing Voltage A.C (kV/5min)	Current Rating In air (A)	Current Rating In soil (A)
4 × 4	1/2.25	0.7	1.8	13.0	155	7.41	3.5	27	36
4 × 6	1/2.76	0.7	1.8	14.0	184	4.61	3.5	35	46
4 × 10	7/1.38	0.7	1.8	17.0	258	3.08	3.5	47	59
4 × 16	7/1.78	0.7	1.8	20.0	366	1.91	3.5	64	80
4 × 25	7/2.14	0.9	1.8	23.0	540	1.200	3.5	82	100
4 × 35	7/2.52	0.9	1.8	25	686	0.868	3.5	100	120
4 × 50	10/2.52	1.0	1.8	23	907	0.641	3.5	125	145
4 × 70	14/2.52	1.1	1.8	27	1192	0.443	3.5	155	175
4 × 95	19/2.52	1.1	1.9	31	1598	0.320	3.5	200	210
4 × 120	24/2.52	1.2	2.0	33	1949	0.253	3.5	220	240
4 × 150	30/2.52	1.4	2.2	38	2517	0.206	3.5	250	270
4 × 185	37/2.52	1.6	2.3	42	3091	0.1640	3.5	295	305
4 × 240	48/2.52	1.7	2.5	47	3825	0.1250	3.5	345	355
4 × 300	61/2.52	1.8	2.6	52	4830	0.1000	3.5	395	400
4 × 400	61/2.97	2.0	3.1	66	5840	0.0778	3.5	445	445
