Shenghua XLPE Insulated Power Cable 21/35kV Abrasion-Resistant IEC-Certified

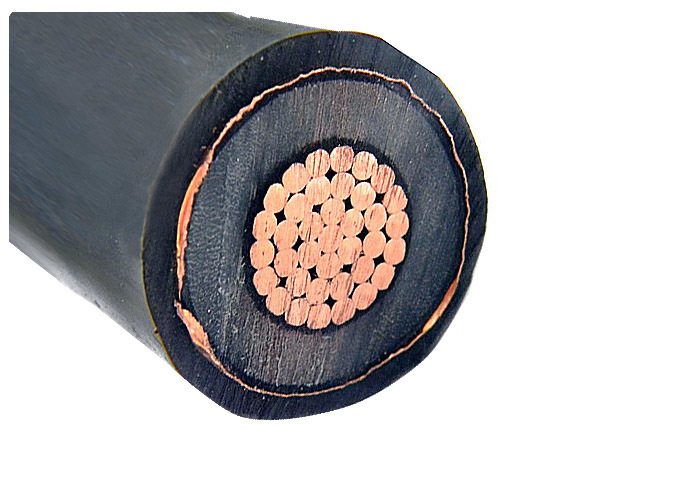

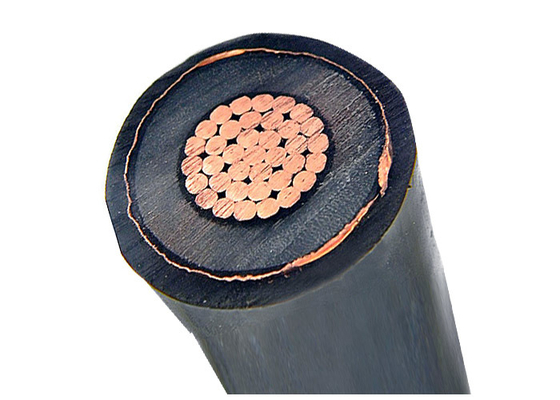

Large Image : Shenghua XLPE Insulated Power Cable 21/35kV Abrasion-Resistant IEC-Certified

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	SHANCABLE
Certification:	ISO,CE,IEC,TUV,KEMA
Model Number:	YJLV 0.6-1KV

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum
Delivery Time:	10 Days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Detailed Product Description

Type:	XLPE Insulated Power Cable	Feature:	Low Voltage
Conductor Screen::	Semi-conductor	Sample:	Free
Insulation Color:	Yellow,Blue	Advnatage:	Abrasion Resistance
Sheath:	PVC Or FR-PVC Type ST2 To IEC 60502, Black	Screen:	Copper Tape
Corporation:	Shenghua Group	Brand:	Sh Cable
Highlight:	XLPE insulated power cable 21/35kV , abrasion-resistant XLPE power cable , IEC-certified XLPE insulated cable

Shenghua XLPE Insulated Power Cable 21/35kV | Abrasion-Resistant & IEC-Certified

Product Specifications

Attribute	Value
Type	XLPE Insulated Power Cable
Feature	Low Voltage
Conductor Screen	Semi-conductor
Sample	Free
Insulation Color	Yellow, Blue
Advantage	Abrasion Resistance
Sheath	PVC or FR-PVC type ST2 to IEC 60502, black
Screen	Copper tape
Corporation	Shenghua Group
Brand	SH Cable

Premium XLPE Insulated Power Cables for 21/35(36)kV Applications

Shenghua's low-voltage XLPE insulated power cables (21/35(36)kV) combine cutting-edge engineering with extreme abrasion resistance, delivering reliable power transmission for industrial grids, renewable energy farms, and urban infrastructure. Trusted across 60+ countries, our cables ensure safety, efficiency, and compliance with global standards.

Market-Leading Features

Triple-Layer Defense System: Compact stranded aluminum conductor (IEC 60228 Class 2) reduces weight by 60% versus copper while lowering installation costs.
Advanced Insulation: XLPE (cross-linked polyethylene) rated for 90°C continuous operation, 130°C emergencies, and 250°C short circuits (≤5 sec) - outperforming PVC in thermal aging and chemical resistance.
Protective Sheath: Abrasion-resistant PVC or FR-PVC (IEC 60502 ST2) provides UV protection, flame retardancy, and mechanical durability for indoor/outdoor applications.

Engineered for Performance & Safety

Superior Abrasion Resistance: Reinforced sheath withstands friction from direct burial, duct pulling, and industrial wear, significantly extending cable lifespan.
Enhanced Fire Safety: FR-PVC sheath inhibits flame spread and reduces toxic fumes (compliant with IEC 60332/60754), critical for tunnels and crowded spaces.

Global Compliance & Certifications

International Standards: IEC 60502-1, GB/T 12706, with custom approvals for BS/DIN/ICEA
Certifications: CE, RoHS, KEMA, with LSOH (Low Smoke Zero Halogen) options available

Technical Performance Data

Conductor (mm²)	Max. DC Resistance (Ω/km)	Current Rating (Soil, A)	Approx. Weight (kg/km)	Key Application
4 × 185	0.164	305	3,091	Industrial plants/substations
4 × 400	0.0778	445	5,840	High-load renewable energy hubs
4 × 300	0.100	400	4,830	Metro tunnels & urban grids

Efficiency Highlights:

Ultra-low resistance (e.g., 0.0778Ω/km for 4×400mm²) reduces energy loss by 10-15%
Minimal bending radius (15× OD for multi-core) simplifies installation in tight spaces

Critical Applications

Industrial Zones: Withstands oil, chemicals, and mechanical stress; 305A soil current (4×185mm²) powers heavy machinery
Renewable Energy Farms: Aluminum conductors resist soil corrosion; XLPE insulation endures -40°C to 130°C
Urban Underground Grids: FR-PVC sheath prevents abrasion during direct burial; zero toxic fumes enhance public safety

Manufacturing Excellence

Scale & Quality: 5000+ employees, ISO 9001/14001 certifications, and 15,000 km/month capacity ensure batch consistency
Global Logistics: Wooden drum packaging for damage-free shipping; MOQ 200 meters, 30% deposit pre-production
Custom Solutions: Tailored configurations for extreme abrasion/chemical exposure environments

Technical Specifications
