| Product Name: | Halogen Free Flame Retardant Medium Voltage XLPE Insulated Power Cable | Insulation Material: | Cross-Linked Polyethylene (XLPE) |
|---|---|---|---|
| Sheath Material: | Low Smoke Zero Halogen (LSZH) Compound | Rated Voltage: | 8.7/15 KV |
| Application: | Medium Voltage Distribution, Substations, Industrial Parks | Halogen Content: | Zero Halogen (IEC 60754) |
| Flame Retardant Grade: | IEC 60332-3 Cat A | Screen Type: | Copper Tape Or Copper Wire Screen |
| Conductor Material: | Stranded Copper Or Aluminium | Service Temperature: | -25 C To +90 C |
| Highlight: | halogen free medium voltage,flame retardant mv cable,low smoke lszh cable |
||
Halogen Free Flame Retardant Medium Voltage XLPE Insulated Power Cable brings fire safety to the medium voltage side of the network. This halogen free medium voltage cable uses a low smoke zero halogen (LSZH) sheath so that a fault or fire in a substation does not flood the room with toxic halogen gas or dense smoke. For medium voltage distribution inside buildings, tunnels and industrial parks, a halogen free medium voltage cable is the responsible specification.

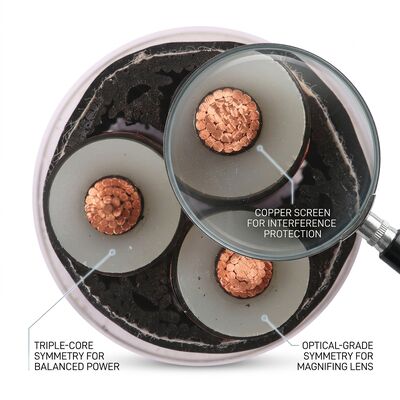

The flame retardant mv cable applies a semi-conducting conductor screen, a cross-linked polyethylene insulation and a copper tape or copper wire screen to control the electric field at 8.7/15 kV. The low smoke lszh cable sheath is tested to IEC 60754 for zero halogen and to IEC 60332-3 Cat A for flame spread, so the halogen free medium voltage cable protects both people and equipment. Every halogen free flame retardant medium voltage XLPE insulated power cable is routine tested for partial discharge, conductor resistance and voltage withstand before dispatch.
| Parameter | Specification |
|---|---|
| Product Name | Halogen Free Flame Retardant Medium Voltage XLPE Insulated Power Cable |
| Rated Voltage | 8.7/15 kV |
| Conductor | Stranded copper or aluminium |
| Insulation | Cross-linked polyethylene (XLPE) |
| Screen | Copper tape or copper wire screen |
| Sheath | Low smoke zero halogen (LSZH) |
| Halogen Content | Zero halogen to IEC 60754 |
| Flame Retardant | IEC 60332-3 Cat A |
Q: Why select a halogen free medium voltage cable for substations?
A: Confined medium voltage rooms need low toxic gas and smoke, which this halogen free medium voltage cable delivers.
Q: What flame performance does the flame retardant mv cable meet?
A: The low smoke lszh cable meets IEC 60332-3 Cat A and IEC 60754 for zero halogen output.
Q: Is the halogen free flame retardant medium voltage XLPE insulated power cable tested?
A: Yes, including partial discharge and voltage withstand testing on every manufactured length.
Shenghua manufactures this halogen free medium voltage cable under clean conditions to prevent voids, and every length is partial discharge tested to IEC 60502-2 before dispatch. The flame retardant mv cable sheath is verified to IEC 60754 for zero halogen and to IEC 60332-3 Cat A for flame spread, so the low smoke lszh cable is documented for indoor substations. Because a halogen free medium voltage cable is often installed indoors, we also check conductor screen concentricity so field control is reliable. Our engineers support the flame retardant mv cable selection for each voltage, and the low smoke lszh cable is supplied as single core or three core with copper tape or copper wire screens for the halogen free medium voltage cable route.
Q: How do you ensure the halogen free medium voltage cable is void free?
A: It is made under clean conditions and partial discharge tested, so the flame retardant mv cable is verified before dispatch.
Q: Where is the low smoke lszh cable recommended?
A: Indoors, where the halogen free medium voltage cable removes toxic gas and the low smoke lszh cable protects escape routes.
