|Shielded Instrument Cable
|Flexible Tinned Copper

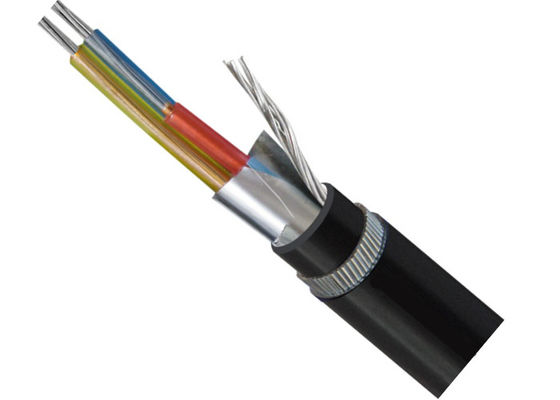

Shielded Instrumentation Cable,
Instrumentation Tray Cable
Tinned Copper Conductor Signal PE Insulated Cable Customized ISO CE Certification
|Copper wire braiding, Copper tape wrapping and Al-foil optional
|Steel wire or steel tape optional
This product applies for connecting wire of electric appliance,apparatusor computer,used in distribution eqwipments with rated voltage up to and including A.C.450/750V or D.C.1000V.
Shielded Instrument Cable is used as signal transmission and connection of checking appliances of distribution system, computer system and automatic system of power.
For use in installations designed to connect electrical instrumentation circuits and provide communication services in and around process plants. Suitable for direct burial applications.
Character and Relevant Parameters:
1. Long-term service temperature of the cable conductor: 90°C
2. Rated voltage: 300/500V,450/750V ,600/1000V.
3. Cable lying temperature ≥ 0°C
4. Cores(pair/triple): 1~19
5. Minimun bending radius:≥ out diameter of cable 6 times
The cable is approved to operate upon fixed-installation or moveable using in ambient temperature from -40 ℃ to 50 ℃ , relative humidity not larger than 80%and operating temperature of core not higher than 70 ℃ as well as avoiding direct high-temperature radiation or contact. The temperature shall never less than 0℃ when the cable being laid. Permissible bending radius:not less than 6 times of overall diameter for unarmored cable;not less than 12 times of overall diameter for armored or screened cable;not less than 6 times of overall diameter for screened flexible cable.
|Instrumenation Cable Description
|Instrumenation soft cable with Cu core, PE insulation, PVC sheath, copper wire braided overall shielding
|Instrumenation cable with Cu core, PE insulation, PVC sheath, copper wire braided individual & overall shielding
|Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, copper wire braided individual & overall shielding
|Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, copper tape wrapping overall shielding
|Instrumenation cable with flexible Cu core, PE insulation, PVC sheath,copper tape wrapping individual shielding
|Instrumenation cable with flexible Cu core, PE insulation, PVC sheath,copper tape wrapping individual & overall shielding
|Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping overall shielding
|Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual shielding
|Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual & overall shielding
|Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual & overall shielding
Packing and shipping
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
