| Core: | 3 Core | Color: | White Or Customied |
|---|---|---|---|
| Size: | 1.5mm2 ,2.5mm2,4mm2,6mm2,10mm2 | Rated Voltage: | 450/750V |
| Insulation: | LSZH PO | Free Sample: | 1.5 Meter |
| Application: | Buildings | ||
| High Light: | low smoke halogen free cable,low smoke zero halogen wire |
||

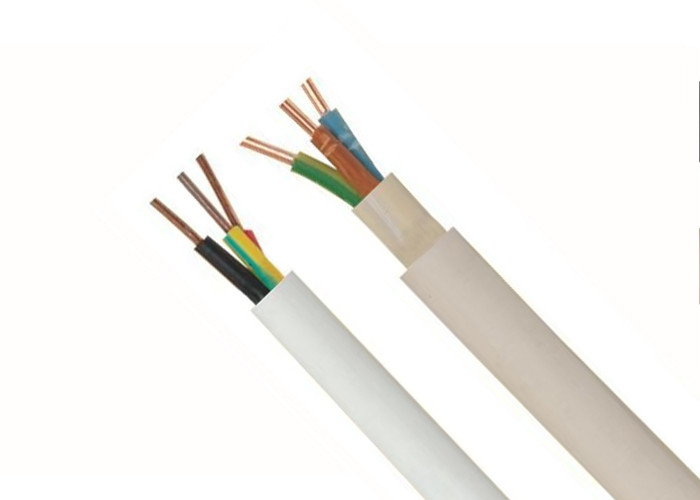

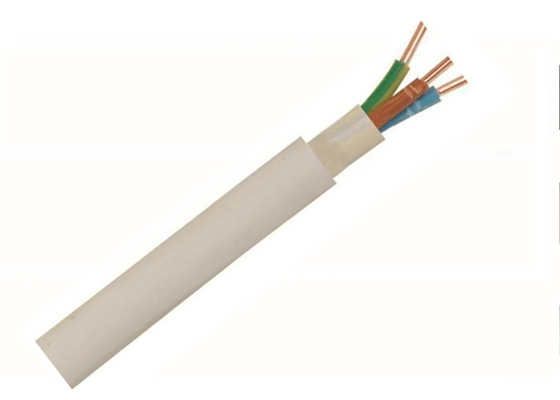

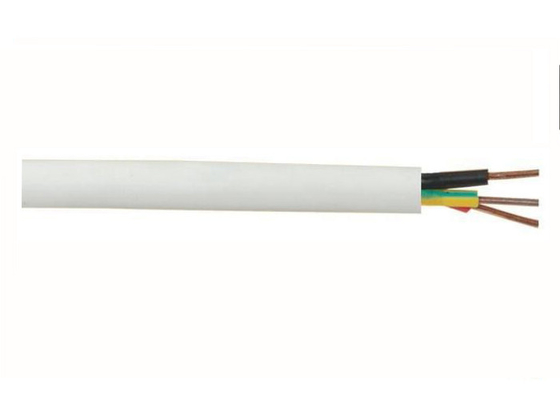

Single LSZH Copper Conductor Cable , Low Smoke Cable For Telecommunications Equipment
Rated voltage: ≤1.5mm2 300V / 500V; ≥1.5mm; 450V / 750V.
Conductor: cores, meet the requirements of GB / T 3956-1997 defined: the first one kind of solid conductors; stranded conductors with the first two kinds.
Insulation: LSZH PO
Flag colors: red, white, blue, green, black, gray, brown ...
Cross-sectional area: 0.5-1.0mm2 60227IEC05 WDZA-BVV; 1.5-300mm2 60227IEC01 BV.
Temperature: In normal use, the maximum conductor temperature of 70 ℃.
Reference Standard: GB 5023--2008, IEC60227.
Application:
BVV cables in the industrial and distribution areas has been widely used, can be used for rated voltages 450 / 750V and below, household appliances, instruments, meters, telecommunications equipment, power line fixed laying cable (wire). . Meanwhile, BV cables in access to the CCC and CE mark certification, in line with HD (EU harmonized standards) requirements, applicable not only to the Chinese market, but also for the European market.
2. Technical data
Temperature range :
during installationi : +5 °C up to +70 °C
fixed installed : -30 °C up to +70 °C
at short circuit of max. 5 s : up to 150 °C
ambient temperature at storage : up to 40 °C
Nominal voltage : Uο/U = 300/500 V
Test voltage : 2000 V
Minimal inner bending radius : 4D for D < 8 mm
5D for 8 - 12 mm
6D for D > 12 mm
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods
are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: T/T,L/C,D/P,D/A
For the first business: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.For the second deal , and if the clients are reliable and with good reputations , Open Account is acceptable, but the buyer should pay the interest for the capital of the contract titled goods
at the rate of 0.05% per day.
Q: What's the MOQ?
A: According to different types often 500 meters-1000meters
If you have another question, pls feel free to contact us.
Why Choose US ?
Packaging & Shipping
| Standard Packaging | suitable for long-distance shipment |
| Normal cable factory length | one coil with 100 meter |
| Cable Weight | Approx. 15kg/km ~500kg/km |
