Product Details:
Payment & Shipping Terms:
|
Insulation Color: | Natural Color Or Customization | Core: | 1.2.3.4.5 |
---|---|---|---|
Cable Mark: | Ink Printing Or Embossing | Core Mark: | Ink With Number Or Color Strip |
Conductor: | Pure Copper | Outer Sheath Color: | Black Or Customization |
Corporation: | Shenghua Group | Brand: | Sh Cable |
Highlight: | xlpe insulation cable,xlpe electrical cable |

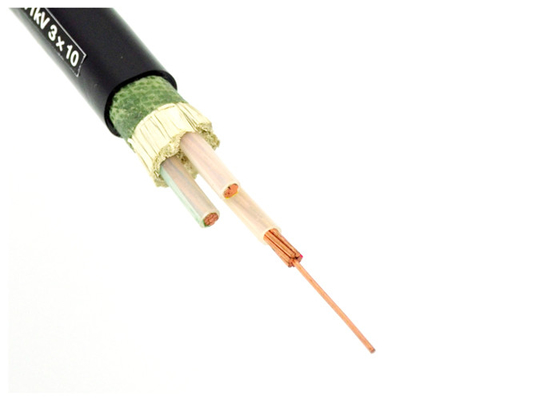

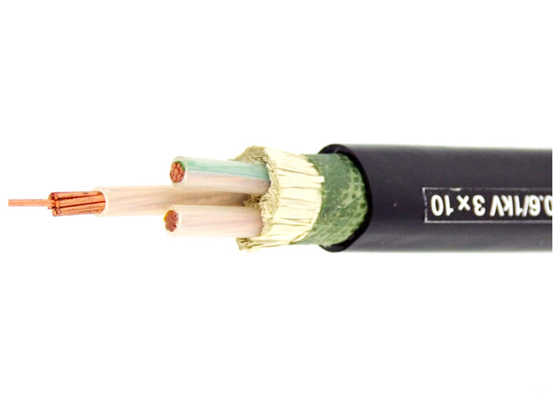

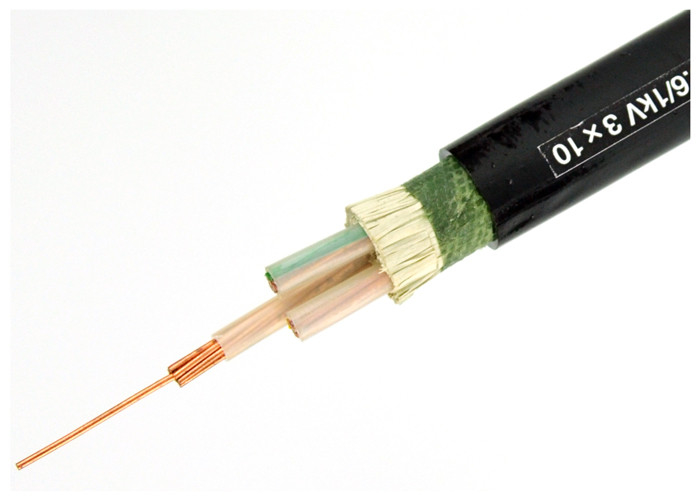

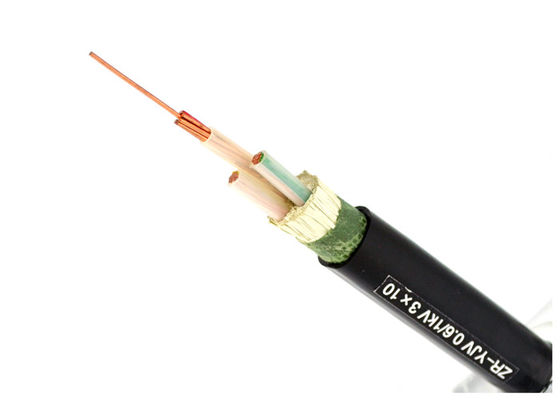

600/1000V Copper Conductor XLPE Insulated Power cable Electrical cable
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 OC
Outer sheath : PVC
CODE Designation:
YJ: XLPE insulation
V: PVC sheath
Applications:
Suitable for use in power distribution lines with rated voltage 0.6/1 KV. These cables have a low dielectric loss, used in indoors, in cable ducts, underground, in power or switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
Standards:
International: IEC 60502-1, IEC 60228
China: GB/T 12706.1-2008
Germany: VDE 0276
Britain: BS 7889
Technical data: Rated voltage:0.6/1kV Low Voltage
Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core without armor
15 x cable O.D for multi core without armor
15 x cable O.D for single core with armor
12 x cable O.D for multi core with armor
Construction:
Ordering Advice
Rated Voltage
Application Standard: IEC/BS/UL/GB
Number of Cores
Conductor Size & Construction
Type of Insulation
Armored or unarmored. If armor, the armor type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
Other Requirement
Certificates:
CE, RoHS, CCC, KEMA and more others at request
Brief technical Specification:
Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Inner Sheath Thickness | Dia. Of Armor Wire | Sheath Thickness | Approx. O.D. | Approx. Weight |
mm2 | pc/mm | mm | mm | mm | mm | (mm) | kg/km |
1 × 25 | 7/2.14 | 2.5 | 1.2 | 1.6 | 1.8 | 24.0 | 1396 |
1 × 35 | 7/2.52 | 2.5 | 1.2 | 1.6 | 1.8 | 25.0 | 1550 |
1 × 50 | 10/2.52 | 2.5 | 1.2 | 1.6 | 1.8 | 26.0 | 1754 |
1 × 70 | 14/2.52 | 2.5 | 1.2 | 1.6 | 1.9 | 28.0 | 2054 |
1 × 95 | 19/2.52 | 2.5 | 1.2 | 1.6 | 1.9 | 29.0 | 2367 |
1 × 120 | 24/2.52 | 2.5 | 1.2 | 1.6 | 2.0 | 31.0 | 2701 |
1 × 150 | 30/2.52 | 2.5 | 1.2 | 2.0 | 2.0 | 33.0 | 3301 |
1 × 185 | 37/2.52 | 2.5 | 1.2 | 2.0 | 2.1 | 35.0 | 3756 |
1 × 240 | 48/2.52 | 2.6 | 1.2 | 2.0 | 2.2 | 38.0 | 4458 |
1 × 300 | 61/2.52 | 2.8 | 1.2 | 2.0 | 2.3 | 40.0 | 5223 |
1 × 400 | 61/2.97 | 3.0 | 1.3 | 2.5 | 2.4 | 45.0 | 6804 |
1 × 500 | 61/3.23 | 3.2 | 1.3 | 2.5 | 2.5 | 50.0 | 8094 |
