LV Copper Conductor XLPE Insulated Power cable 5 Core reliable Factory

China LV Copper Conductor XLPE Insulated  Power cable 5 Core reliable Factory supplier
LV Copper Conductor XLPE Insulated  Power cable 5 Core reliable Factory supplier LV Copper Conductor XLPE Insulated  Power cable 5 Core reliable Factory supplier LV Copper Conductor XLPE Insulated  Power cable 5 Core reliable Factory supplier LV Copper Conductor XLPE Insulated  Power cable 5 Core reliable Factory supplier

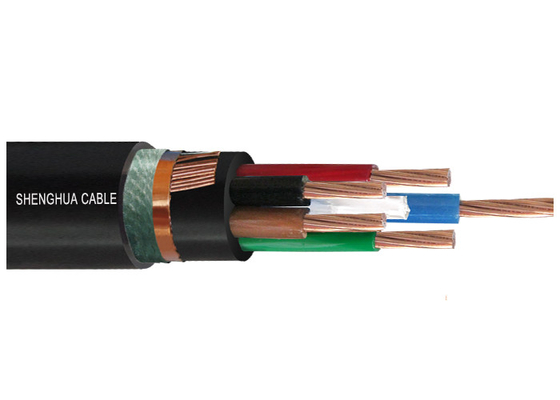

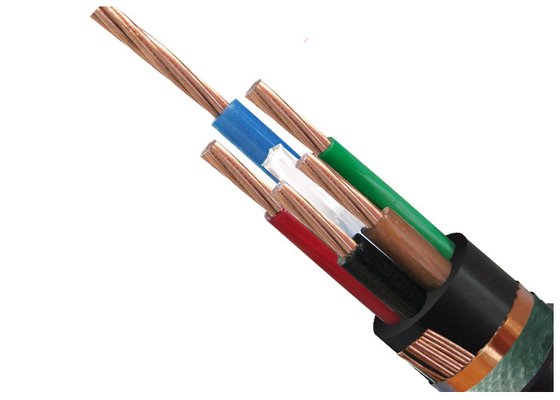

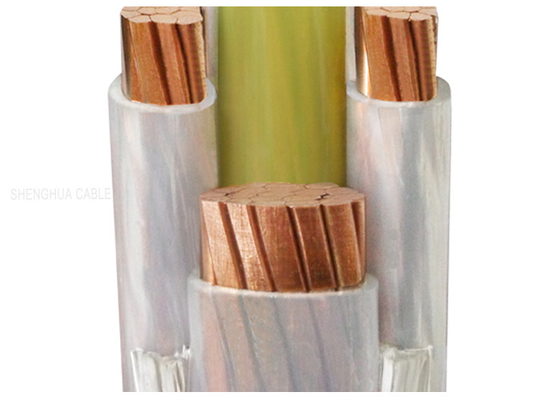

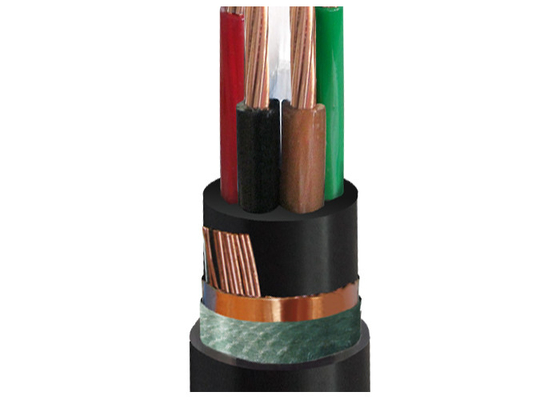

Large Image :  LV Copper Conductor XLPE Insulated Power cable 5 Core reliable Factory

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: YJV,N2XY

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Core No.: 5 Core Insulation Color: Yellow,Blue Red Green,Brown Or As Per Request
Standard: IEC 60502-1,IEC 60228 Or BS VDE As Per Request Filler: White Polypropylene Filler Or Black Filler Bar
Core Mark: Ink Number Or Color Strip Outer SheathIdentification: Ink Printing Or Embossing
Drum Length: 500 M Or As Per Request Conductor Shape: Circular
Corporation: Shenghua Group Brand: Sh Cable
Highlight:

xlpe insulation cable

,

xlpe electrical cable

LV Copper Conductor XLPE Insulated Power cable 5 Core reliable Factory



Description:



0.6/1kv XLPE Insulated Electric Power cable

CU/XLPE/PVC, IEC 60502

IEC 60502, IEC 60228, GB/T 12706.1-2008.

CE, CCC, KEMA. ISO. VDE



Constructions



Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228

Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃

Sheath : PVC type ST2 to IEC 60502, black



Applications



For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.



Standards



International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request



Technical data



Rated voltage: 0.6/1kV

Max. Conductor Temp.: normal (90℃), short circuit no more than 5 s (160℃ when section-area below 300mm2, 140℃ when section-area above 300mm2)

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%



Certificates



CE, RoHS, CCC, KEMA and more others at request



Ordering Advice



Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement



Technical Specifications:



Nom. Cross-section of conductor Strands No./Dia. of Conductor Insulation Thickness Sheath Thickness Approx. O.D.

Approx

.Weight

Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm Lower Limit (mm) kg/km Ω /km kV/5min In air (A) Direct In soil(A)
5 × 4 1/2.25 0.7 1.8 14.5 349 4.61 3.5 34 45
5 × 6 1/2.76 0.7 1.8 15.8 460 3.08 3.5 43 57
5× 10 7/1.38 0.7 1.8 19.0 699 1.83 3.5 60 77
5 × 16 7/1.78 0.7 1.8 22.0 1013 1.15 3.5 83 105
5 × 25 7/2.14 0.9 1.8 25.0 1566 0.727 3.5 105 125
5 × 35 7/2.52 0.9 1.9 28.0 2083 0.524 3.5 125 155
5× 50 10/2.52 1.0 2.0 31.0 2921 0.387 3.5 160 185
5× 70 14/2.52 1.1 2.1 36.0 3974 0.268 3.5 200 225
5× 95 19/2.52 1.1 2.2 39.0 5297 0.193 3.5 245 270
5 × 120 24/2.52 1.2 2.4 44.0 6638 0.153 3.5 285 310
5 × 150 30/2.52 1.4 2.5 49.0 8290 0.124 3.5 325 345
5 × 185 37/2.52 1.6 2.7 55.0 10215 0.0991 3.5 375 390
5 × 240 48/2.52 1.7 3.0 64.0 13130 0.0754 3.5 440 450
5 × 300 61/2.52 1.8 3.2 70.0 16670 0.0601 3.5 505 515





























Packing and shipping:



        We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.



Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.



 After-service commitment:



Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:


1. Customer is God. We will cherish every client, every cooperation by heart.



2. Free pre-sales service. We will provide best proposal for each client.



3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning technical advisory service when establish cooperation relationship with clients.



4. Thoughtful after sales service. Our product are warranted by PICC (People's Insurance Company of China). We will provide free maintaining and debugging within 12 month after installation(except for the wrong using).



5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.



6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!




                                                                                       Shanghai Shenghua Cable (Group) Co., Ltd.



FAQ
Q: How long does it take to get a quote back?


A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.


Q: What warranties do your products carry?


A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :



1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire



2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.



3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.



4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.

Q: Do you sell other products besides wire and cable?


A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.
