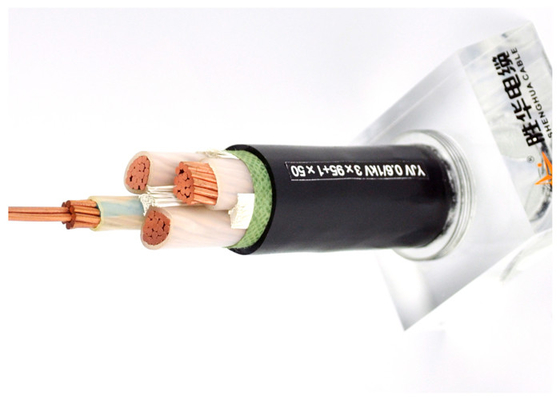

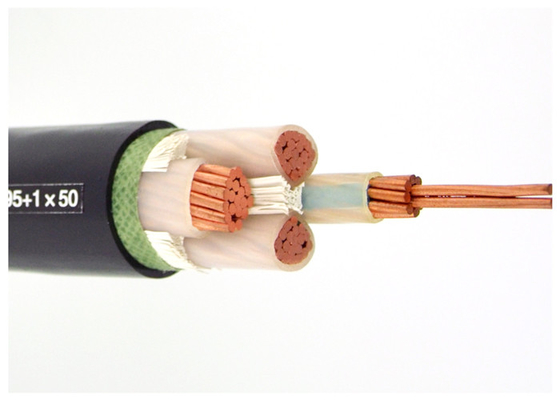

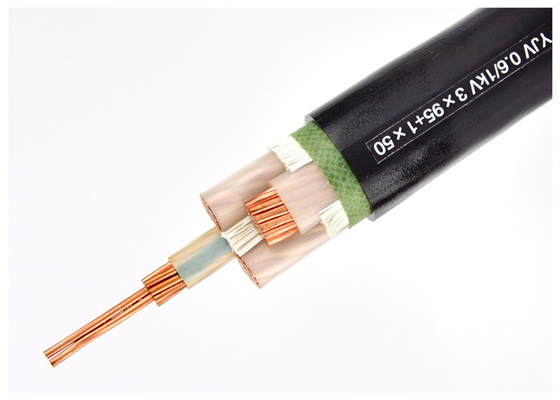

Three main and one reduced conductor 1kV XLPE insulated Electric cable as per IEC 60502-1

China Three  main and one reduced conductor 1kV XLPE insulated Electric cable as per IEC 60502-1 supplier
Three  main and one reduced conductor 1kV XLPE insulated Electric cable as per IEC 60502-1 supplier Three  main and one reduced conductor 1kV XLPE insulated Electric cable as per IEC 60502-1 supplier Three  main and one reduced conductor 1kV XLPE insulated Electric cable as per IEC 60502-1 supplier Three  main and one reduced conductor 1kV XLPE insulated Electric cable as per IEC 60502-1 supplier

Large Image :  Three main and one reduced conductor 1kV XLPE insulated Electric cable as per IEC 60502-1

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: YJV N2XY

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Core: Three Main And One Reduced Conductor Rated Voltage: 600/1000V
Insulation Color: Any Color Conductor: Class 2
Standard: IEC 60502-1,IEC 60228 Cable Packing: 500m Per Drum Or As Per Request
Corporation: Shenghua Group Brand: Sh Cable
Highlight:

xlpe insulated cable

,

xlpe electrical cable

Three main and one reduced conductor 1kV XLPE insulated Electric cable as per IEC 60502-1

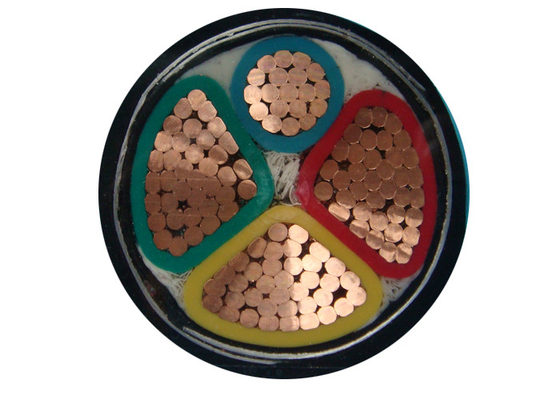

Construction



Conductor: Annealed Copper Conductor as per IEC 60228

≤6mm2 solid (class 1) or stranded (class 2)

6mm2 stranded (class 2)

Flexible conductor (class 5) optional.

Insulation:XLPE (Cross-Linked Polyethylene) rated at 90

Metallic Screen optional: Copper tape or copper wires braiding optional

Armored optional: Aluminum wire or stainless steel tape for single core cable, Steel wire or steel tape for multi core cable

Sheath: PVC or FR-PVC type ST2 to IEC 60502, black or red or customization



Applications



XLPE Insulated Cable is used as power distribution and transmission line at rated voltage 0.6/1KV.

Used outside as energy utility and lighting cables, in cable ducts, underground, under normal and salty water if specially made.



Standards



International: IEC 60502-1, IEC 60228, (IEC 60332-3 for FR-type only)

China: GB/T 12706, (GB/T 18380-3 for FR-type only)

Other standards such as BS, DIN and ICEA upon request





Technical Specifications

Technical Specifications

Nom. Cross-section of conductor Strands No./Dia. of Conductor Insulation Thickness Sheath Thickness Approx. O.D.

Approx

.Weight

Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm Lower Limit (mm) kg/km Ω /km kV/5min In air (A) Direct In soil(A)

3 × 4+

1 × 2.5

1/2.25+1/1.38 0.7 1.8 13 236 4.61 3.5 34 45

3 × 6+

1 × 4

1/2.76+1/2.25 0.7 1.8 14 316 3.08 3.5 43 57

3 × 10+

1 × 6

7/1.38+1/2.8 0.7 1.8 17 461 1.83 3.5 60 77

3 × 16+

1 × 10

7/1.78+7/1.38 0.7 1.8 19 679 1.15 3.5 83 105

3 × 25+

1 × 16

7/2.14+7/1.78 0.9 1.8 22 1065 0.727 3.5 105 125

3 × 35+

1 × 16

7/2.52+7/1.78 0.9 1.8 24 1360 0.524 3.5 125 155

3 × 50+

1 × 25

10/2.52+7/2.14 1.0 1.8 25 1901 0.387 3.5 160 185

3 × 70+

1 × 35

14/2.52+7/2.52 1.1 1.9 28 2585 0.268 3.5 200 225

3 × 95+

1 × 50

19/2.52+10/2.52 1.1 2.0 32 3518 0.193 3.5 245 270

3 × 120+

1 × 70

24/2.52+14/2.52 1.2 2.1 35 4443 0.153 3.5 285 310

3 × 150+

1 × 70

30/2.52+14/2.52 1.4 2.2 40 5326 0.124 3.5 325 345

3 × 185+

1 × 95

37/2.52+19/2.52 1.6 2.4 43 6682 0.0991 3.5 375 390

3 × 240+

1 × 120

48/2.52+24/2.52 1.7 2.5 48 8501 0.0754 3.5 440 450

3 × 300+

1 × 150

61/2.52+30/2.52 1.8 2.7 54 11155 0.0601 3.5 505 515











Packing and shipping: We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.



Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement
