Professional XLPE Insulated Power Cable High Voltage Cable Insulation Nature Color

China Professional XLPE Insulated Power Cable High Voltage Cable Insulation Nature Color supplier
Professional XLPE Insulated Power Cable High Voltage Cable Insulation Nature Color supplier Professional XLPE Insulated Power Cable High Voltage Cable Insulation Nature Color supplier Professional XLPE Insulated Power Cable High Voltage Cable Insulation Nature Color supplier Professional XLPE Insulated Power Cable High Voltage Cable Insulation Nature Color supplier

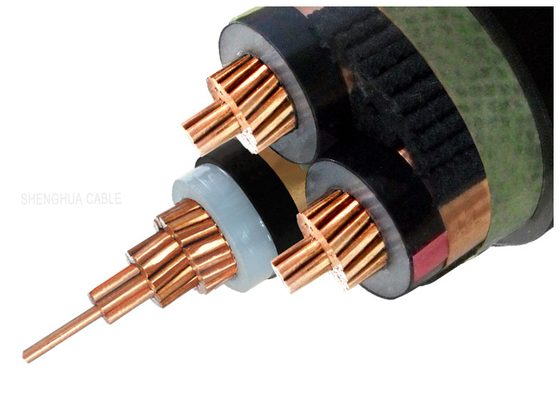

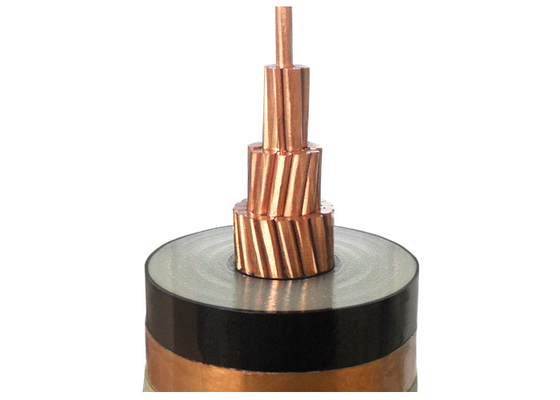

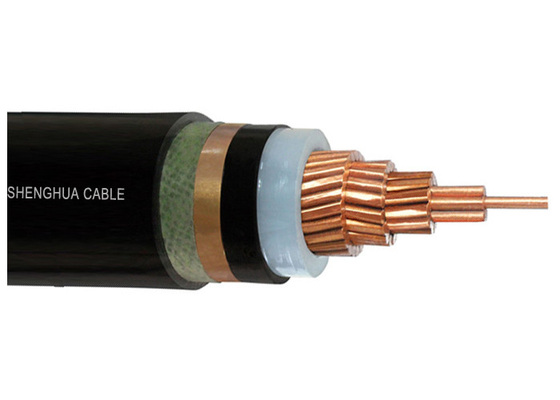

Large Image :  Professional XLPE Insulated Power Cable High Voltage Cable Insulation Nature Color

Product Details:

Place of Origin: SHANGHAI,CHINA
Brand Name: SHAN CABLE
Certification: IEC/CCC/KEMA/VDE
Model Number: YJV

Payment & Shipping Terms:

Minimum Order Quantity: 200
Price: USD 1.3-289 Per Meter
Packaging Details: Iron Wooden Drum
Delivery Time: 9 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50km per month
Contact Now
Detailed Product Description
Rated Voltage: 6/10kV Insulation Color: Nature Color
Core Mark: Color Strip Core: Single Core Or Three Core
Outer Sheath Color: Black Or As Per Request Cable Mark: Ink Printing Or Embossing
Cable Drum Length: 300-500 Meter Per Drum Metal Screen: Copper Tape Screen (CTS)

Professional XLPE Insulated Power Cable High Voltage Cable Insulation Nature Color


Description:

6/10kv XLPE Insulated cables
CU/XLPE/ PVC, IEC 60502
IEC 60502, IEC 60228, GB/T 12706.1-2008.
CE, CCC, KEMA. ISO

Constructions

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Conductor Screen: Semi-conductor
Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃
Insulation Screen: Semi-conductor
Screen : Copper tape
Sheath : PVC type ST2 to IEC 60502, black


Note: Insulation color as per standards or customer requirement

Applications
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request

Technical data
Rated voltage: 6/10kv
Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0℃
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%

Certificates
CE, RoHS, CCC, KEMA and more others at request

Technical Specifications


Nom. Cross-section of conductorStrands No./Dia. Of ConductorInsulation ThicknessSheath ThicknessApprox. O.D.

Approx.
Weight

Max. D.C Resistance of Conductor (20 ℃)Testing Voltage A.CCurrent Rating
mm2pc/mmmmmm(mm)kg/kmΩ /kmkV/5minIn air (A)In soil(A)
1 × 257/2.143.4220.05980.72721140150
1 × 357/2.523.4222.07190.52421175180
1 × 5010/2.523.4223.08840.38721205215
1 × 7014/2.523.4224.010970.26821260265
1 × 9519/2.523.4226.013780.19321315315
1 × 12024/2.523.4228.016580.15321365360
1 × 15030/2.523.4230.019670.12421415405
1 × 18537/2.523.4231.023350.099121475455
1 × 24048/2.523.4234.029080.075421565530
1 × 30061/2.523.4236.035070.060121645595
1 × 40061/2.973.42.539.045030.047021750680
1 × 50061/3.233.42.542.054790.036621865765
1 × 63061/3.503.42.548.069520.028321990860
1 × 80091/3.203.42.652.071200.0221211140950
1 × 100091/3.753.42.857.0105000.01762112501040
3 × 257/2.143.42.341.08950.72721120125
3 × 357/2.523.42.444.022930.52421145155
3 × 5010/2.523.42.546.028120.38721175180
3 × 7014/2.523.42.650.035080.26821220220
3 × 9519/2.523.42.753.044020.19321265265
3 × 12024/2.523.42.856.053190.15321305300
3 × 15030/2.523.42.959.063090.12421350340
3 × 18537/2.523.43.062.073190.099121395380
3 × 24048/2.523.43.268.092180.075421470435
3 × 30061/2.523.43.472.0111590.060121535485
3 × 40061/2.973.43.681.0151070.047021610520




Ordering Advice

Rated Voltage
Application Standard: IEC/BS/UL/GB
Number of Cores
Conductor Size & Construction
Type of Insulation
Armored or unarmored. If armor, the armor type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
Other Requirement


After-service commitment: Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service. Our product are warranted by PICC (People's Insurance Company of China). We will provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!

                                                                                       Shanghai Shenghua Cable (Group) Co., Ltd.





PACKING AND SHIPPING

       We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
       Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

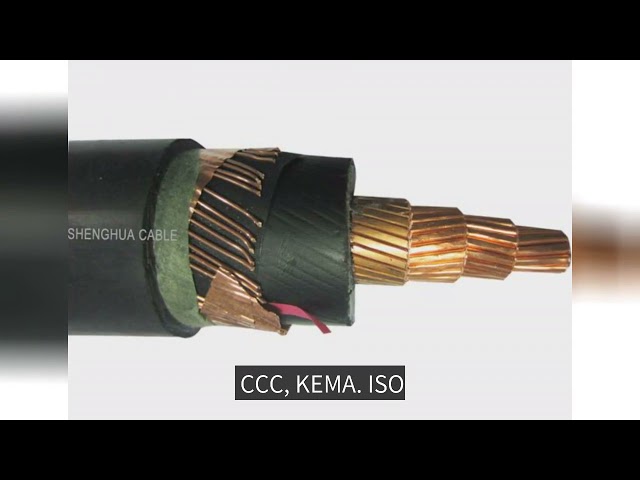

Professional XLPE Insulated Power Cable High Voltage Cable Insulation Nature Color
