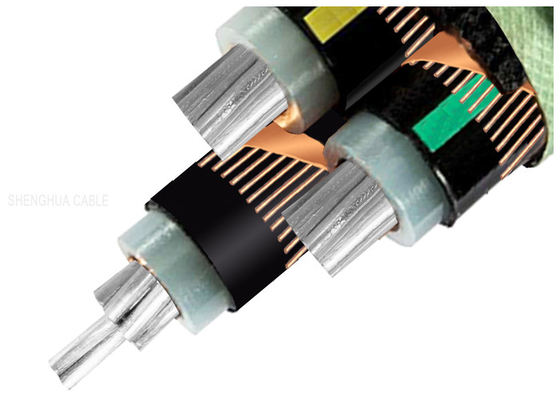

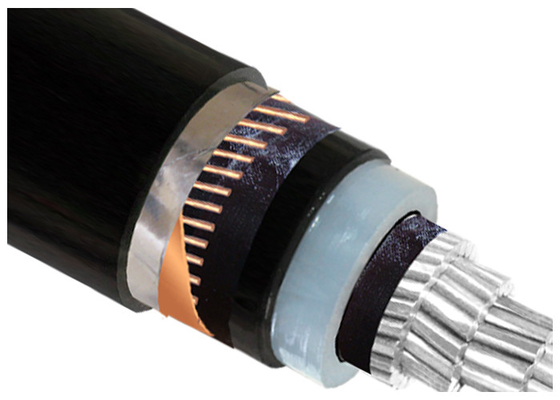

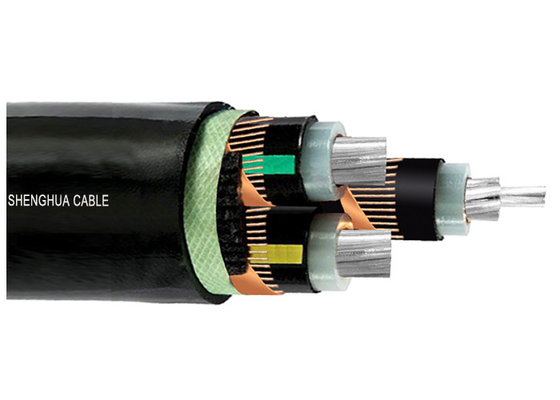

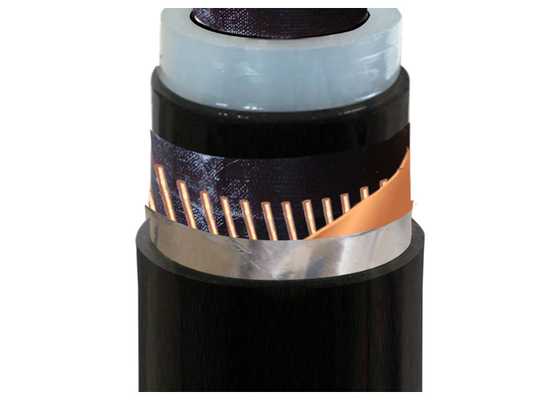

Medium Voltage 26/35kV AL/XLPE/CTS/PVC with Stranded Conductor Rigid
Applications: XLPE Insulated Cable is used as power distribution and transmission line at rated voltage 26/35kV.
Construction:
Conductor | Aluminum Conductor as per IEC 60228,Class 2 |
Circular or Shaped conductor | |
Flexible conductor(class 5) optional. | |
Insulation | XLPE (Cross-Linked Polyethylene) rated at 90℃,many color optional |
Metallic Screen optional | Copper tape or copper wires braiding optional |
Sheath | PVC or FR-PVC type ST2 to IEC 60502, black or red or customization |
Ordering Advice
Rated Voltage
Application Standard: IEC/BS/UL/GB
Number of Cores
Conductor Size & Construction
Type of Insulation
Armored or unarmored. If armor, the armor type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
Other Requirement
Technical data: Rated voltage:26/35kV Medium Voltage
Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core without armor
15 x cable O.D for multi core without armor
15 x cable O.D for single core with armor
12 x cable O.D for multi core with armor
Standards: International: IEC 60502-2, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS, DIN, VDE and ICEA upon request
Technical parameter:
Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Sheath Thickness | Approx. O.D. |
Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
mm2 | pc/mm | mm | mm | mm | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
1 × 50 | 7/3.07 | 10.5 | 2.2 | 39.0 | 1449 | 0.641 | 91 | 170 | 165 |
1 × 70 | 19/2.20 | 10.5 | 2.4 | 41.0 | 1604 | 0.443 | 91 | 210 | 200 |
1 × 95 | 19/2.56 | 10.5 | 2.4 | 42.0 | 1767 | 0.320 | 91 | 255 | 240 |
1 × 120 | 19/2.86 | 10.5 | 2.4 | 44.0 | 1923 | 0.253 | 91 | 290 | 270 |
1 × 150 | 19/3.20 | 10.5 | 2.5 | 45.0 | 2103 | 0.206 | 91 | 330 | 305 |
1 × 185 | 37/2.52 | 10.5 | 2.5 | 47.0 | 2282 | 0.164 | 91 | 380 | 345 |
1 × 240 | 372.56 | 10.5 | 2.6 | 49.0 | 2584 | 0.125 | 91 | 435 | 400 |
1 × 300 | 61/2.56 | 10.5 | 2.7 | 51.0 | 2891 | 0.100 | 91 | 510 | 455 |
1 × 400 | 61/2.92 | 10.5 | 2.8 | 55.0 | 3325 | 0.0778 | 91 | 595 | 525 |
1 × 500 | 61/3.23 | 10.5 | 2.9 | 58.0 | 4076 | 0.0605 | 91 | 690 | 600 |
1 × 630 | 61/3.65 | 10.5 | 3 | 62.0 | 4305 | 0.0469 | 91 | 800 | 685 |
3 × 50 | 7/3.07 | 10.5 | 3.7 | 81.0 | 5778 | 0.641 | 91 | 145 | 170 |
3 × 70 | 19/2.20 | 10.5 | 3.8 | 84.0 | 6232 | 0.443 | 91 | 190 | 190 |
3 × 95 | 19/2.56 | 10.5 | 3.9 | 88.0 | 6824 | 0.320 | 91 | 215 | 230 |
3 × 120 | 19/2.86 | 10.5 | 4.0 | 91.0 | 7406 | 0.253 | 91 | 245 | 255 |
3 × 150 | 19/3.20 | 10.5 | 4.1 | 95.0 | 8165 | 0.206 | 91 | 280 | 295 |
3 × 185 | 37/2.52 | 10.5 | 4.2 | 98.0 | 8904 | 0.164 | 91 | 310 | 330 |
3 × 240 | 372.56 | 10.5 | 4.4 | 103.0 | 10270 | 0.125 | 91 | 365 | 380 |
3 × 300 | 61/2.56 | 10.5 | 4.5 | 108.0 | 11786 | 0.100 | 91 | 430 | 435 |
3 × 400 | 61/2.92 | 10.5 | 4.8 | 116.0 | 19346 | 0.0778 | 91 | 485 | 500 |
Packing and shipping: We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
After-service commitment: Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service. Our product are warranted by PICC (People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
