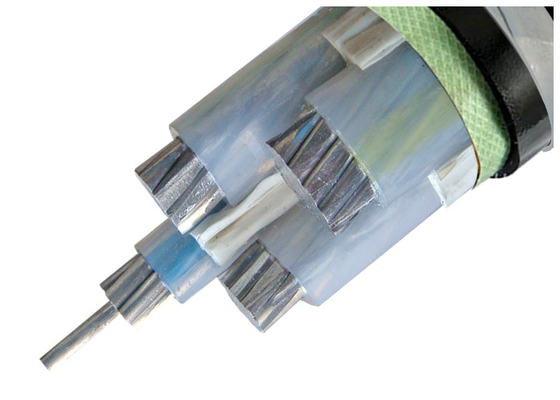

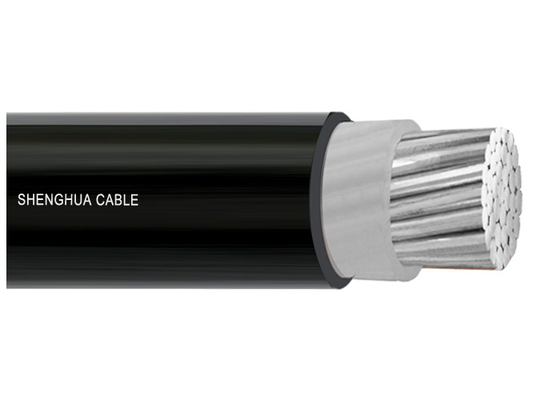

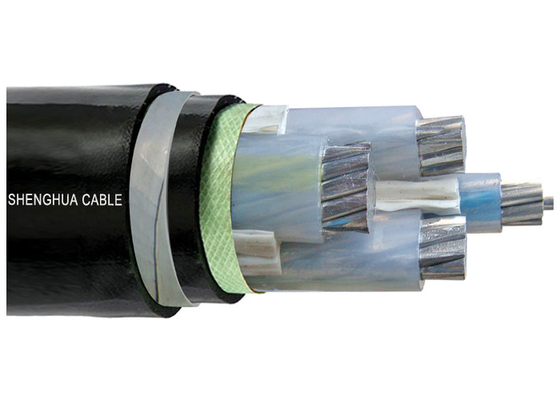

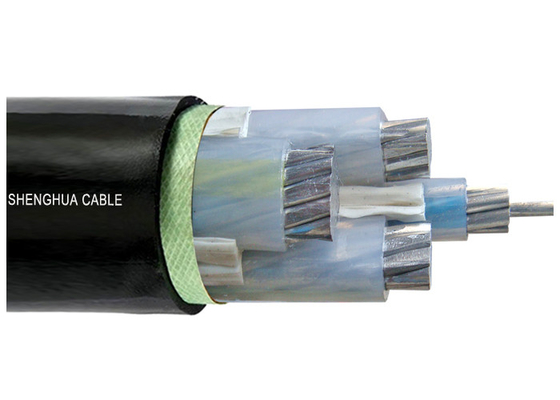

Aluminum Conductor Single Core & Multi core XLPE Insulated Power cable Low Voltage 600/1000V

China Aluminum Conductor Single Core & Multi core XLPE Insulated  Power cable Low Voltage 600/1000V supplier
Aluminum Conductor Single Core & Multi core XLPE Insulated  Power cable Low Voltage 600/1000V supplier Aluminum Conductor Single Core & Multi core XLPE Insulated  Power cable Low Voltage 600/1000V supplier Aluminum Conductor Single Core & Multi core XLPE Insulated  Power cable Low Voltage 600/1000V supplier Aluminum Conductor Single Core & Multi core XLPE Insulated  Power cable Low Voltage 600/1000V supplier

Large Image :  Aluminum Conductor Single Core & Multi core XLPE Insulated Power cable Low Voltage 600/1000V

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: YJLV

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Rated Voltage: 600/1000V Insulation Color: Any Color
Core No.: 1.2.3.4.5 Conductor: Stranded Aluminum Conductor
Standard: IEC 60502-1,IEC 60228 Core Mark: Color Strip Or Number
Cable Mark: Ink Printing Or Embossing Corporation: Shenghua Group
Brand: Sh Cable
Highlight:

xlpe insulation cable

,

xlpe electrical cable

Applications: XLPE Insulated Cable is used as power distribution and transmission line at rated voltage 0.6/1KV.



Construction:

Conductor Aluminunm Conductor as per IEC 60228,Class 2
Circular or Shaped conductor
Insulation XLPE (Cross-Linked Polyethylene) rated at 90℃,many color optional
Metallic Screen optional Copper tape or copper wires braiding optional
Sheath PVC or FR-PVC type ST2 to IEC 60502, black or red or customization



Ordering Advice



Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement





Technical data: Rated voltage:0.6/1kV Low Voltage

Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core without armor

15 x cable O.D for multi core without armor

15 x cable O.D for single core with armor

12 x cable O.D for multi core with armor



Standards: International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)

China: GB/T 12706, (GB/T 18380-3 for FR-type only)

Other standards such as BS, DIN, VDE and ICEA upon request



Technical parameter:



Nom. Cross-section of conductor Insulation Thickness Sheath Thickness Approx. O.D. Approx. Weight Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 mm mm mm kg/km Ω /km kV/5min In air (A) In soil(A)
1×2.5 0.7 1.5 6 68 7.41 3.5 30 35
1×4 0.7 1.5 7 64 7.41 3.5 35 50
1×6 0.7 1.5 7 73 4.61 3.5 45 55
1×10 0.7 1.5 8 95 3.08 3.5 60 75
1×16 0.7 1.5 9 120 1.91 3.5 80 100
1×25 0.9 1.5 10 190 1.20 3.5 115 130
1×35 0.9 1.5 12 207 0.868 3.5 140 150
1×50 1.0 1.5 13 245 0.641 3.5 170 180
1×70 1.1 1.5 14 336 0.443 3.5 215 225
1×95 1.1 1.5 16 455 0.320 3.5 275 270
1×120 1.2 1.5 18 550 0.253 3.5 320 305
1×150 1.4 2.0 21 650 0.206 3.5 370 340
1×185 1.6 2.0 23 804 0.164 3.5 415 375
1×240 1.7 2.0 25 1021 0.125 3.5 490 435
1×300 1.8 2.0 34 1160 0.100 3.5 615 710
1×400 2.0 2.1 37 1469 0.0778 3.5 730 820
1×500 2.2 2.2 41 1829 0.0605 3.5 850 940
1×630 2.4 2.3 45 2305 0.0469 3.5 1000 1080
1×800 2.6 2.4 46 2910 0.0367 3.5 1160 1220
1×1000 2.8 2.6 51 3604 0.0291 3.5 1330 1380
3×2.5 0.7 1.5 11 140 12.1 3.5 25 30
3×4 0.7 1.5 12 175 7.41 3.5 30 40
3×6 0.7 1.5 13 210 4.61 3.5 40 45
3×10 0.7 1.5 15 260 3.08 3.5 50 60
3×16 0.7 1.5 17 340 1.91 3.5 65 80
3×25 0.9 2.0 21 470 1.20 3.5 90 100
3×35 0.9 2.0 23 600 0.868 3.5 110 120
3×50 1.0 2.0 27 730 0.641 3.5 130 140
3×70 1.1 2.0 30 970 0.443 3.5 170 175
3×95 1.1 2.0 34 1240 0.320 3.5 205 210
3×120 1.2 2.5 38 1540 0.253 3.5 240 235
3×150 1.4 2.5 42 1940 0.206 3.5 275 265
3×185 1.6 2.5 45 2248 0.164 3.5 320 301
3×240 1.7 3.0 51 2723 0.125 3.5 385 355
3×300 1.8 3.0 52 3675 0.100 3.5 445 395
3×400 2.0 3.0 54 4506 0.0778 3.5 530 460
4×4 0.7 1.5 13 155 7.41 3.5 30 40
4×6 0.7 1.5 14 184 4.61 3.5 40 45
4×10 0.7 1.5 16 258 3.08 3.5 50 60
4×16 0.7 2.0 19 366 1.91 3.5 65 80
4×25 0.7 2.0 22 540 1.20 3.5 90 100
4×35 0.9 2.0 25 686 0.868 3.5 110 120
4×50 1.0 2.0 28 907 0.641 3.5 130 140
4×70 1.1 2.0 32 1192 0.443 3.5 170 175
4×95 1.1 2.5 37 1598 0.320 3.5 205 210
4×120 1.2 2.5 42 1949 0.253 3.5 240 235
4×150 1.4 3.0 46 2517 0.206 3.5 275 265
4×185 1.6 3.0 51 3091 0.164 3.5 320 305
4×240 1.7 3.0 57 3825 0.125 3.5 385 355
4×300 1.8 3.0 59 4830 0.100 3.5 445 395
4×400 2.0 3.0 62 5840 0.0778 3.5 530 460




Packing and shipping: We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.



After-service commitment: Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:


1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service. Our product are warranted by PICC (People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.



FAQ
Q: How long does it take to get a quote back?


A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.


Q: What warranties do your products carry?


A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.

Q: Do you sell other products besides wire and cable?


A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.
