|Core No.:||4 Core||Insulation Color:||Yellow,Blue Red Green Or As Per Request|
|Standard:||IEC 60502-1,IEC 60228||Filler:||Polypropylene Filler|
|Core Mark:||Ink Number Or Color Strip||Outer SheathIdentification:||Ink Printing Or Embossing|
|Drum Length:||500 M Or As Per Request||Conductor Shape:||Fan Shaped Or Circular|

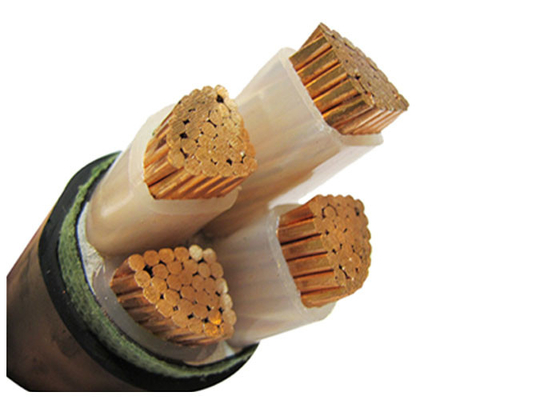

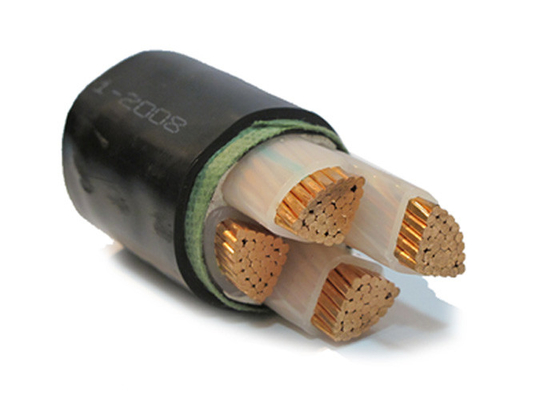

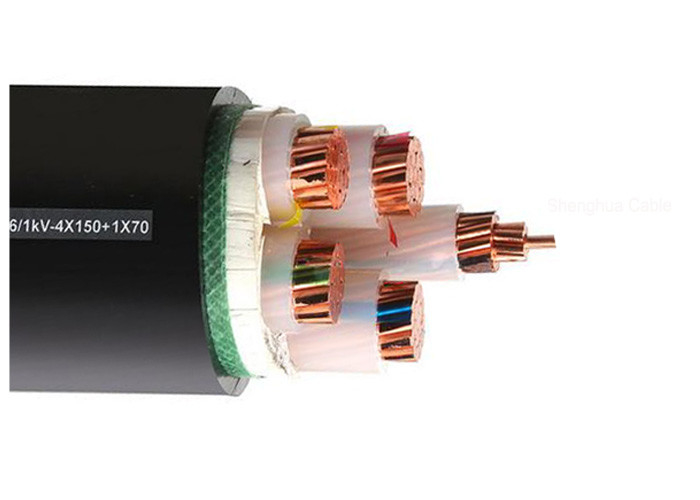

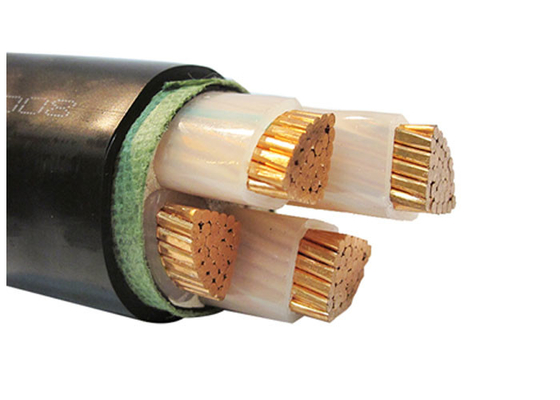

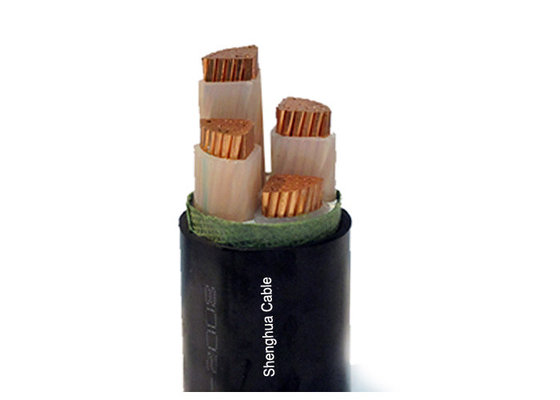

4 Core LV XLPE Copper Cable Polypropylene Filler CE IEC Certification
0.6/1kv XLPE Insulated Electric Power cable
CU/XLPE/PVC, IEC 60502
IEC 60502, IEC 60228, GB/T 12706.1-2008.
CE, CCC, KEMA. ISO. VDE
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃
Sheath : PVC type ST2 to IEC 60502, black
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
Rated voltage: 0.6/1kV
Max. Conductor Temp.: normal (90℃), short circuit no more than 5 s (160℃ when section-area below 300mm2, 140℃ when section-area above 300mm2)
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0℃
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%
CE, RoHS, CCC, KEMA and more others at request
Application Standard: IEC/BS/UL/GB
Number of Cores
Conductor Size & Construction
Type of Insulation
Armored or unarmored. If armor, the armor type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
|Nom. Cross-section of conductor||Strands No./Dia. of Conductor||Insulation Thickness||Sheath Thickness||Approx. O.D.||
|Max. D.C Resistance of Conductor (20 ℃)||Testing Voltage A.C||Current Rating|
|mm2||pc/mm||mm||mm||Lower Limit (mm)||kg/km||Ω /km||kV/5min||In air (A)||Direct In soil(A)|
|4 × 4||1/2.25||0.7||1.8||13.0||253||4.61||3.5||34||45|
|4 × 6||1/2.76||0.7||1.8||14.0||337||3.08||3.5||43||57|
|4 × 10||7/1.38||0.7||1.8||17.0||501||1.83||3.5||60||77|
|4 × 16||7/1.78||0.7||1.8||20.0||778||1.15||3.5||83||105|
|4 × 25||7/2.14||0.9||1.8||23.0||1160||0.727||3.5||105||125|
|4 × 35||7/2.52||0.9||1.8||25||1554||0.524||3.5||125||155|
|4 × 50||10/2.52||1.0||1.8||23||2148||0.387||3.5||160||185|
|4 × 70||14/2.52||1.1||1.8||27||2928||0.268||3.5||200||225|
|4 × 95||19/2.52||1.1||1.9||31||3854||0.193||3.5||245||270|
|4 × 120||24/2.52||1.2||2.0||33||4925||0.153||3.5||285||310|
|4 × 150||30/2.52||1.4||2.2||38||6238||0.124||3.5||325||345|
|4 × 185||37/2.52||1.6||2.3||42||7562||0.0991||3.5||375||390|
|4 × 240||48/2.52||1.7||2.5||47||9836||0.0754||3.5||440||450|
|4 × 300||61/2.52||1.8||2.6||52||12550||0.0601||3.5||505||515|
|4 × 400||61/2.97||2.0||3.1||66||15929||0.0470||3.5||570||575|
Packing and Shipping
We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
Q: How long does it take to get a quote back?
A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.
Q: What warranties do your products carry?
A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
Q: Do you sell other products besides wire and cable?
A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.
