NXY XLPE Insulated Power Cable LV single & Multi Core 95 Sq mm KEMA CE IEC

China NXY XLPE Insulated Power Cable LV single & Multi Core 95 Sq mm KEMA CE IEC supplier
NXY XLPE Insulated Power Cable LV single & Multi Core 95 Sq mm KEMA CE IEC supplier

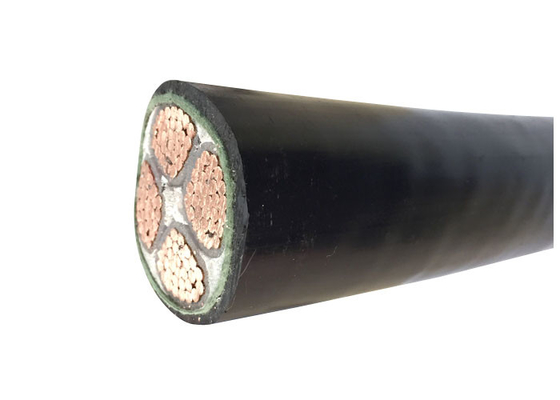

Large Image :  NXY XLPE Insulated Power Cable LV single & Multi Core 95 Sq mm KEMA CE IEC

Product Details:

Place of Origin: Shanghai, China
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: YJV,YAXV-R

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Rated Voltage: 0.6/1kV Manufacturer: Top 3 China Cable Manufacturer
Cross Section Area: 95 Sqmm Outer Sheath Color: Black Or As Per Request
Core Mark: Number Or Color Strip Cable Mark: Ink Printing Or Embossing
Pakcing: Steel-wooden Drum Packing Length: 500 Meters Per Drum
High Light:

xlpe insulation cable


xlpe insulated cable

NXY XLPE Insulated Power Cable LV single & Multi Core 95 Sq mm KEMA CE IEC Certification


Applications: XLPE Insulated Cable is used as power distribution and transmission line at rated voltage 0.6/1KV.



Conductor Copper Conductor as per IEC 60228,Class 2
Circular or Shaped conductor
Flexible conductor(class 5) optional.
Insulation XLPE (Cross-Linked Polyethylene) rated at 90℃,many color optional
Metallic Screen optional Copper tape or copper wires braiding optional
Sheath PVC or FR-PVC type ST2 to IEC 60502, black or red or customization


Ordering Advice


Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement



Technical data: Rated voltage:0.6/1kV Low Voltage

Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core without armor

15 x cable O.D for multi core without armor

15 x cable O.D for single core with armor

12 x cable O.D for multi core with armor


Standards: International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)

China: GB/T 12706, (GB/T 18380-3 for FR-type only)

Other standards such as BS, DIN, VDE and ICEA upon request




1. The installation temperature should not over 20℃, If the ambient temperature is lower than 0℃, the cable should be preheated.
2. The bending radius of cable should not less than 8 times.
3. After installation, the cable should with stand voltage test for 15min. 3.5kv D.C.


Technical parameter:


Nom. Cross-section of conductor Insulation Thickness Sheath Thickness Approx. O.D. Approx.Weight Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 mm mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
1 × 95 1.1 1.5 16.0 1040 0.193 3.5 285 320
2 × 95 1.1 1.8 24.0 2475 0.193 3.5 245 270
3 × 95 1.1 1.9 30.0 3020 0.193 3.5 245 270
4 × 95 1.1 1.9 31 3854 0.193 3.5 245 270
5× 95 1.1 2.2 39.0 5297 0.193 3.5 245 270
3 × 95+ 1 × 50 1.1 2.0 32 3518 0.193 3.5 245 270
4 × 95+ 1 × 50 1.1 2.1 35.6 4735 0.193 3.5 245 270

Packing and shipping: We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.





Aftersales Service



       We, Shanghai Shenghua Cable Group are specialized in R&D and manufacturing cables and wires. We have passed ISO9001:2008 International Quality System Certification(ZDHY), which covers the whole process of the management of the enterprise. A comprehensive quality control system has been put into place to ensure products meet international standards. Our tenet is: Set up top-ranking enterprise, high-class product, excellent service and well-known brand. "Abide by quality assurance, dedicated to provide users with reliable products always" is our commitment to quality. The products of our company are insured by PICC (the People's Insurance Company of China). Moreover, we offer specific guarantees as below:


1.We guarantee that we will comply with the requirements of warranty period specified in the contract.


2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.


3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion

thereof as the case may be, have been delivered to and accepted at the final destination

indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or

place of loading in the country of origin, whichever period concludes earlier.


4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
