Medium Voltage Copper or Aluminum Conductor XLPE Insulated Power Cable Embossing Marking

China Medium Voltage Copper or Aluminum Conductor XLPE Insulated Power Cable Embossing Marking supplier
Medium Voltage Copper or Aluminum Conductor XLPE Insulated Power Cable Embossing Marking supplier Medium Voltage Copper or Aluminum Conductor XLPE Insulated Power Cable Embossing Marking supplier Medium Voltage Copper or Aluminum Conductor XLPE Insulated Power Cable Embossing Marking supplier Medium Voltage Copper or Aluminum Conductor XLPE Insulated Power Cable Embossing Marking supplier

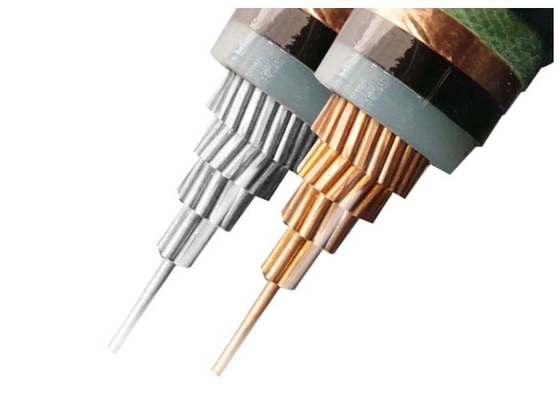

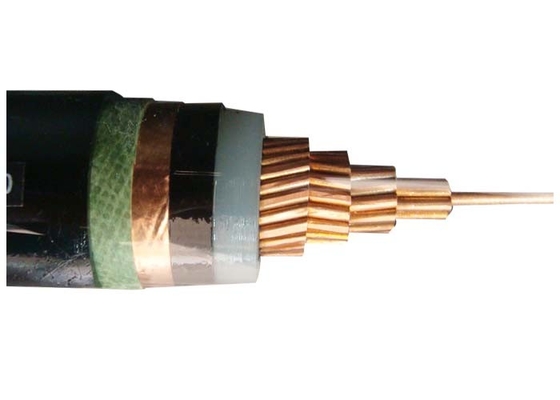

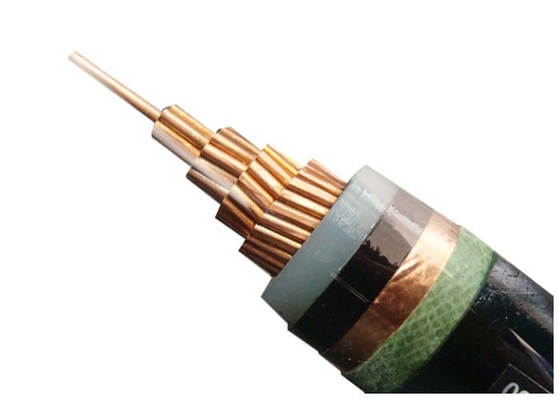

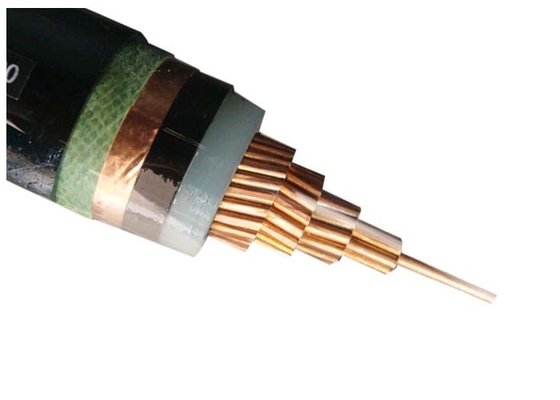

Large Image :  Medium Voltage Copper or Aluminum Conductor XLPE Insulated Power Cable Embossing Marking

Product Details:

Place of Origin: Shanghai, China
Brand Name: SHANCABLE
Certification: ISO,CE,IEC,TUV,KEMA
Model Number: YJV,YJLV N2XY,N2AXY CU or AL/XLPE/PVC

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Detailed Product Description
Rated Voltage: 26/35kV Insulation Color: Nature Or Customized
Core Indefinitaion: Color Strip For Three Core Or Mark With The Number Cable Mark: Embossing
Outer Sheath Color: Black Or Customized Drum Length: 300m Per Drum
Packing Style: Steel Wooden Drum/Whole Wooden Drum/ Whole Metal Drum Port: Shanghai Port
Drum Size: 2240mm ( Height) * 2240mm (length) * 1400 Mm (width)
High Light:

xlpe insulated cable

,

xlpe electrical cable

Medium Voltage Copper or Aluminum Conductor XLPE Insulation Cable Embossing Marking



Applications: XLPE Insulated Cable is used as power distribution and transmission line at rated voltage 26/35kV.



Construction:

Conductor Copper Conductor as per IEC 60228,Class 2
Circular or Shaped conductor
Flexible conductor(class 5) optional.
Insulation XLPE (Cross-Linked Polyethylene) rated at 90℃,many color optional
Metallic Screen optional Copper tape or copper wires braiding optional
Sheath PVC or FR-PVC type ST2 to IEC 60502, black or red or customization



Ordering Advice



Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement





Technical data: Rated voltage:26/35kV Medium Voltage

Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core without armor

15 x cable O.D for multi core without armor

15 x cable O.D for single core with armor

12 x cable O.D for multi core with armor



Standards: International: IEC 60502-2, IEC 60228, (IEC 60332-3 for FR-type only)

China: GB/T 12706, (GB/T 18380-3 for FR-type only)

Other standards such as BS, DIN, VDE and ICEA upon request



Technical parameter:





Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D.

Approx.

Weight

Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm mm kg/km Ω /km kV/5min In air (A) In soil(A)
1 × 50 10/2.52 10.5 2.2 39.0 1758 0.387 91 220 215
1 × 70 14/2.52 10.5 2.4 41.0 2038 0.268 91 270 265
1 × 95 19/2.52 10.5 2.4 42.0 2355 0.193 91 330 315
1 × 120 24/2.52 10.5 2.4 44.0 2666 0.153 91 375 360
1 × 150 30/2.52 10.5 2.5 45.0 3031 0.124 91 425 400
1 × 185 37/2.52 10.5 2.5 47.0 3427 0.0991 91 485 455
1 × 240 48/2.52 10.5 2.6 49.0 4070 0.0754 91 560 525
1 × 300 61/2.52 10.5 2.7 51.0 4748 0.0601 91 650 595
1 × 400 61/2.97 10.5 2.8 55.0 5801 0.0470 91 760 680
1 × 500 61/3.23 10.5 2.9 58.0 6623 0.0366 91 875 775
1 × 630 61/3.50 10.5 3 62.0 5211 0.0283 91 1000 875
1 × 800 91/3.20 10.5 3.1 68.0 10014 0.0221 91 1130 970
1 × 1000 91/3.75 10.5 3.3 72.0 12078 0.0176 91 1250 1060
3 × 50 10/2.52 10.5 3.7 81.0 6728 0.387 91 185 200
3 × 70 14/2.52 10.5 3.8 84.0 7581 0.268 91 230 250
3 × 95 19/2.52 10.5 3.9 88.0 8630 0.193 91 280 300
3 × 120 24/2.52 10.5 4.0 91.0 9688 0.153 91 310 330
3 × 150 30/2.52 10.5 4.1 95.0 11017 0.124 91 360 380
3 × 185 37/2.52 10.5 4.2 98.0 12390 0.0991 91 400 425
3 × 240 48/2.52 10.5 4.4 103.0 14427 0.0754 91 470 490
3 × 300 61/2.52 10.5 4.5 108.0 15940 0.0601 91 540 555
3 × 400 61/2.97 10.5 4.8 116.0 19346 0.0470 91 610 625




Packing and shipping: We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
