N2XY-0.6/1KV Multi - Core Copper Conductor XLPE Insulation Cable IEC Standard

China N2XY-0.6/1KV Multi - Core Copper Conductor XLPE Insulation Cable IEC Standard supplier
N2XY-0.6/1KV Multi - Core Copper Conductor XLPE Insulation Cable IEC Standard supplier N2XY-0.6/1KV Multi - Core Copper Conductor XLPE Insulation Cable IEC Standard supplier N2XY-0.6/1KV Multi - Core Copper Conductor XLPE Insulation Cable IEC Standard supplier N2XY-0.6/1KV Multi - Core Copper Conductor XLPE Insulation Cable IEC Standard supplier

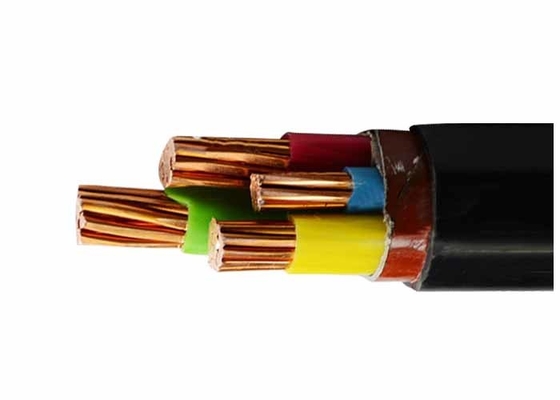

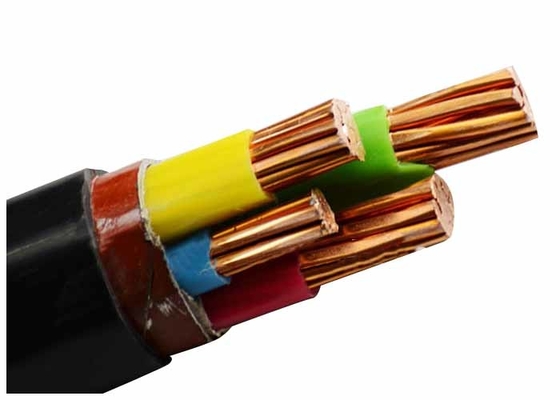

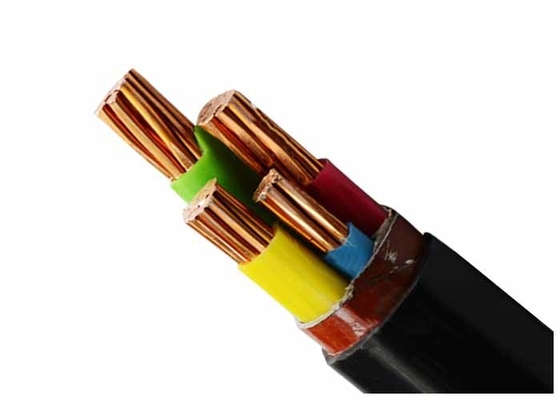

Large Image :  N2XY-0.6/1KV Multi - Core Copper Conductor XLPE Insulation Cable IEC Standard

Product Details:

Place of Origin: SHANGHAI CHINA
Brand Name: SHAN CABLE
Certification: KEMA/CE/ISO/TUV/RoSH
Model Number: N2XY

Payment & Shipping Terms:

Minimum Order Quantity: 100m
Price: USD 0.33-89.88/M
Packaging Details: Wooden Drum
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 289000km/ day
Contact Now
Detailed Product Description
Standard: VDE 0276-Teil 603 Max.Conductor Temp: 90 Degree
Min.Laying Temp: -15 Degree Min .Bending Radius: 12xD
Insulation Material: XLPE Samples: Free
Marking: Embossing Or Ink Printing

N2XY-0.6/1KV Multi-Core Copper conductor XLPE Electrical Cable IEC standard



Description:



0.6/1kv XLPE Insulated Electric Power cable

CU/XLPE/PVC, IEC 60502

IEC 60502, IEC 60228, GB/T 12706.1-2008.

CE, CCC, KEMA. ISO. VDE



Constructions



Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228

Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃

Sheath : PVC type ST2 to IEC 60502, black



Applications



For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.



Standards



International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request



Technical data



Rated voltage: 0.6/1kV

Max. Conductor Temp.: normal (90℃), short circuit no more than 5 s (160℃ when section-area below 300mm2, 140℃ when section-area above 300mm2)

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%



Certificates



CE, RoHS, CCC, KEMA and more others at request



Ordering Advice



Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement



Technical Specifications:



Nom. Cross-section of conductor Strands No./Dia. of Conductor Insulation Thickness Sheath Thickness Approx. O.D.

Approx

.Weight

Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm Lower Limit (mm) kg/km Ω /km kV/5min In air (A) Direct In soil(A)
4 × 4 1/2.25 0.7 1.8 13.0 253 4.61 3.5 34 45
4 × 6 1/2.76 0.7 1.8 14.0 337 3.08 3.5 43 57
4 × 10 7/1.38 0.7 1.8 17.0 501 1.83 3.5 60 77
4 × 16 7/1.78 0.7 1.8 20.0 778 1.15 3.5 83 105
4 × 25 7/2.14 0.9 1.8 23.0 1160 0.727 3.5 105 125
4 × 35 7/2.52 0.9 1.8 25 1554 0.524 3.5 125 155
4 × 50 10/2.52 1.0 1.8 23 2148 0.387 3.5 160 185
4 × 70 14/2.52 1.1 1.8 27 2928 0.268 3.5 200 225
4 × 95 19/2.52 1.1 1.9 31 3854 0.193 3.5 245 270
4 × 120 24/2.52 1.2 2.0 33 4925 0.153 3.5 285 310
4 × 150 30/2.52 1.4 2.2 38 6238 0.124 3.5 325 345
4 × 185 37/2.52 1.6 2.3 42 7562 0.0991 3.5 375 390
4 × 240 48/2.52 1.7 2.5 47 9836 0.0754 3.5 440 450
4 × 300 61/2.52 1.8 2.6 52 12550 0.0601 3.5 505 515
4 × 400 61/2.97 2.0 3.1 66 15929 0.0470 3.5 570 575
